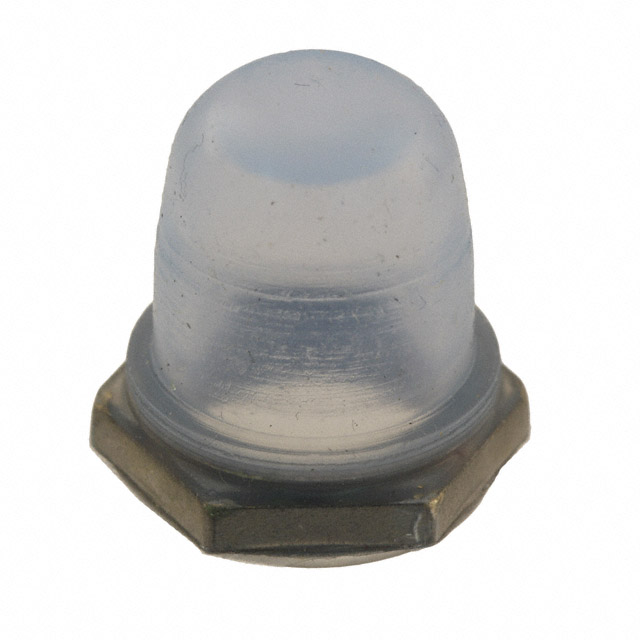

NC3030 4

Active

APM HEXSEAL

PUSHBUTTON FULL BOOT CLEAR

Search across all available documentation for this part.

Active

APM HEXSEAL

PUSHBUTTON FULL BOOT CLEAR

Technical Specifications

Parameters and characteristics for this part

Specification	NC3030 4

Actuator Diameter [diameter]	0.422 in
Actuator Diameter [diameter]	10.72 mm
Color	Clear
For Use With/Related Products	Multiple Series
Ingress Protection	IP66/IP68
Material	Silicone Rubber
Mounting Feature	Front of Panel
Operating Temperature [Max]	204 °C
Operating Temperature [Min]	-70 °C
Size / Dimension [z]	0.719 in
Size / Dimension [z]	18.26 mm
Thread Size	15/32-32 NS-2B
Type	Pushbutton, Full Boot

Part	Size / Dimension [z]	Size / Dimension [z]	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Thread Size	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	For Use With/Related Products	Mounting Feature	Color	Material	Type	Size / Dimension [z]	Features
APM HEXSEAL NC3030H 2	18.65 mm	0.734 in	0.422 in	10.72 mm	1/2-32 NS-2B	IP66/IP68	204 °C	-70 °C	Multiple Series	Front of Panel	Gray	Silicone Rubber	Pushbutton Full Boot
APM HEXSEAL NC3030H M12-1 2		18.64 mm	0.422 in	10.72 mm	M12x1	IP66/IP68	204 °C	-70 °C	Multiple Series	Front of Panel	Gray	Silicone Rubber	Pushbutton Full Boot	0.733 in
APM HEXSEAL NC3030 7/16-284		18.26 mm	0.422 in	10.72 mm	7/16-28 UNEF-2B	IP66/IP68	204 °C	-70 °C	Multiple Series	Front of Panel	Clear	Silicone Rubber	Pushbutton Full Boot	0.719 in
APM HEXSEAL NC3030 4		18.26 mm	0.422 in	10.72 mm	15/32-32 NS-2B	IP66/IP68	204 °C	-70 °C	Multiple Series	Front of Panel	Clear	Silicone Rubber	Pushbutton Full Boot	0.719 in
APM HEXSEAL NC3030 RFI 2		18.26 mm	0.422 in	10.72 mm	15/32-32 NS-2B	IP66/IP68	204 °C	-70 °C	Multiple Series	Front of Panel	Gray	Silicone Rubber	Pushbutton Full Boot	0.719 in	Shielded
APM HEXSEAL NC3030 2		18.26 mm	0.422 in	10.72 mm	15/32-32 NS-2B	IP66/IP68	204 °C	-70 °C	Multiple Series	Front of Panel	Gray	Silicone Rubber	Pushbutton Full Boot	0.719 in
