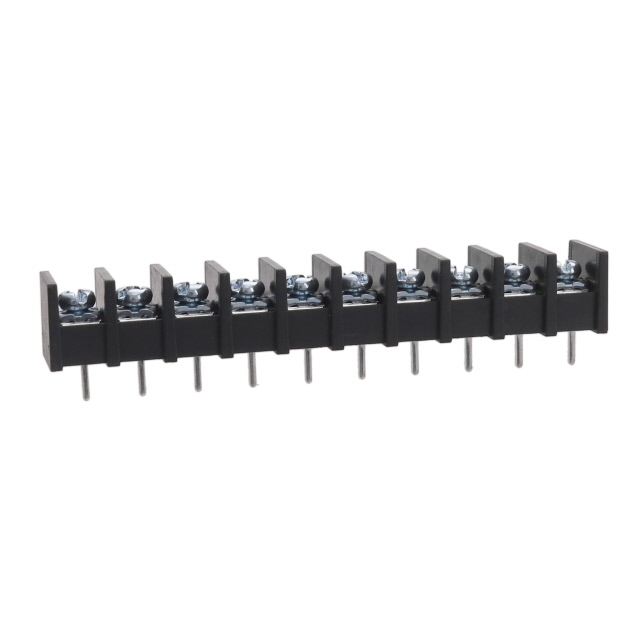

YK4211003000G

Active

Amphenol Anytek

PCB MOUNT BARRIER TERMINAL BLOCK, 8.25 MM, 1 ROW, 10 POSITIONS, 22 AWG, 12 AWG, 20 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN

YK4211003000G

Active

Amphenol Anytek

PCB MOUNT BARRIER TERMINAL BLOCK, 8.25 MM, 1 ROW, 10 POSITIONS, 22 AWG, 12 AWG, 20 A

Deep-Dive with AI

DocumentsDrawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YK4211003000G

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin
Color	Black
Current Rating (Amps)	20 A
Material - Insulation	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Circuits	10
Number of Rows	1
Number of Wire Entries	10
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	8.26 mm
Pitch [x]	0.325 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Zinc
Terminal Screw Material	Steel
Top Termination	Screws with Captive Plate
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

YK421 Series

Part	Current Rating (Amps)	Terminal Screw Finish	Bottom Termination	Color	Terminal Block Type	Terminal Screw Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Pitch [x]	Pitch [x]	Number of Wire Entries	Wire Gauge [Min]	Wire Gauge [Max]	Number of Circuits	Voltage Rating	Material - Insulation	Mounting Type	Top Termination	Barrier Type	Number of Rows	Number of Circuits [custom]
Amphenol Anytek YK4211303000G	20 A	Zinc	PC Pin	Black	Barrier Block	Steel	-40 °C	115 °C	UL94 V-0	8.26 mm	0.325 in	13	12 AWG	22 AWG	13	300 VDC	Thermoplastic	Through Hole	Screws with Captive Plate	2 Wall (Dual)	1
Amphenol Anytek YK4211703000G	20 A	Zinc	PC Pin	Black	Barrier Block	Steel	-40 °C	115 °C	UL94 V-0	8.26 mm	0.325 in	17	12 AWG	22 AWG	17	300 VDC	Thermoplastic	Through Hole	Screws with Captive Plate	2 Wall (Dual)	1
Amphenol Anytek YK4211203000G	20 A	Zinc	PC Pin	Black	Barrier Block	Steel	-40 °C	115 °C	UL94 V-0	8.26 mm	0.325 in	12	12 AWG	22 AWG	12	300 VDC	Thermoplastic	Through Hole	Screws with Captive Plate	2 Wall (Dual)	1
Amphenol Anytek YK4210803000G	20 A	Zinc	PC Pin	Black	Barrier Block	Steel	-40 °C	115 °C	UL94 V-0	8.26 mm	0.325 in	8	12 AWG	22 AWG		300 VDC	Thermoplastic	Through Hole	Screws with Captive Plate	2 Wall (Dual)	1	8
Amphenol Anytek YK4211803000G	20 A	Zinc	PC Pin	Black	Barrier Block	Steel	-40 °C	115 °C	UL94 V-0	8.26 mm	0.325 in	18	12 AWG	22 AWG	18	300 VDC	Thermoplastic	Through Hole	Screws with Captive Plate	2 Wall (Dual)	1
Amphenol Anytek YK4211403000G	20 A	Zinc	PC Pin	Black	Barrier Block	Steel	-40 °C	115 °C	UL94 V-0	8.26 mm	0.325 in	14	12 AWG	22 AWG	14	300 VDC	Thermoplastic	Through Hole	Screws with Captive Plate	2 Wall (Dual)	1
Amphenol Anytek YK4210603000G	20 A	Zinc	PC Pin	Black	Barrier Block	Steel	-40 °C	115 °C	UL94 V-0	8.26 mm	0.325 in	6	12 AWG	22 AWG	6	300 VDC	Thermoplastic	Through Hole	Screws with Captive Plate	2 Wall (Dual)	1
Amphenol Anytek YK4211003000G	20 A	Zinc	PC Pin	Black	Barrier Block	Steel	-40 °C	115 °C	UL94 V-0	8.26 mm	0.325 in	10	12 AWG	22 AWG	10	300 VDC	Thermoplastic	Through Hole	Screws with Captive Plate	2 Wall (Dual)	1
Amphenol Anytek YK4210303000G	20 A	Zinc	PC Pin	Black	Barrier Block	Steel	-40 °C	115 °C	UL94 V-0	8.26 mm	0.325 in	3	12 AWG	22 AWG	3	300 VDC	Thermoplastic	Through Hole	Screws with Captive Plate	2 Wall (Dual)	1
Amphenol Anytek YK4210903000G	20 A	Zinc	PC Pin	Black	Barrier Block	Steel	-40 °C	115 °C	UL94 V-0	8.26 mm	0.325 in	9	12 AWG	22 AWG		300 VDC	Thermoplastic	Through Hole	Screws with Captive Plate	2 Wall (Dual)	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.90
		10	$ 1.44
		25	$ 1.33
		50	$ 1.20
		100	$ 1.17
		250	$ 1.03

Description

General part information

YK421 Series

10 Circuit 0.325" (8.26mm) Barrier Block Connector Screws with Captive Plate

Documents

Technical documentation and resources

Drawing EN

Datasheet
