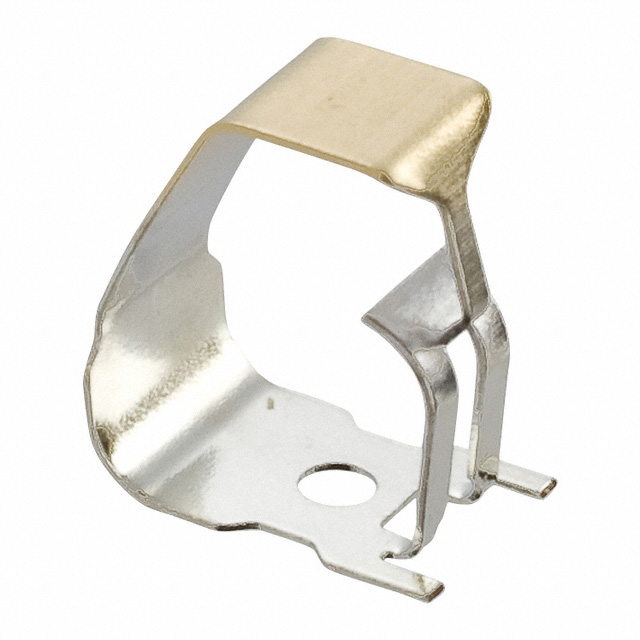

S7111-42R - S7111-42R

S7111-42R

Active
Harwin Inc.

CONNECTOR ACCESSORY, SHIELD FINGER, PCB SHIELDING AND GROUNDING APPLICATIONS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsS1741-46RDatasheet+3
S7111-42R - S7111-42R

S7111-42R

Active
Harwin Inc.

CONNECTOR ACCESSORY, SHIELD FINGER, PCB SHIELDING AND GROUNDING APPLICATIONS

Deep-Dive with AI

DocumentsS1741-46RDatasheet+3

Technical Specifications

Parameters and characteristics for this part

SpecificationS7111-42R
Attachment MethodSolder
Height [z]0.177 in
Height [z]4.5 mm
Length3.5 mm
Length [x]0.138 "
MaterialCopper Alloy
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
PlatingGold
Plating - ThicknessFlash
TypeShield Finger, Pre-Loaded
Width [x]0.098 in
Width [x]2.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.60
10$ 0.52
25$ 0.48
100$ 0.38
250$ 0.36
500$ 0.30
Digi-Reel® 1$ 0.60
10$ 0.52
25$ 0.48
100$ 0.38
250$ 0.36
500$ 0.30
Tape & Reel (TR) 1800$ 0.23
3600$ 0.21
5400$ 0.20
12600$ 0.19
45000$ 0.18

Description

General part information

S7111 Series

CONNECTOR ACCESSORY, SHIELD FINGER, PCB SHIELDING AND GROUNDING APPLICATIONS
