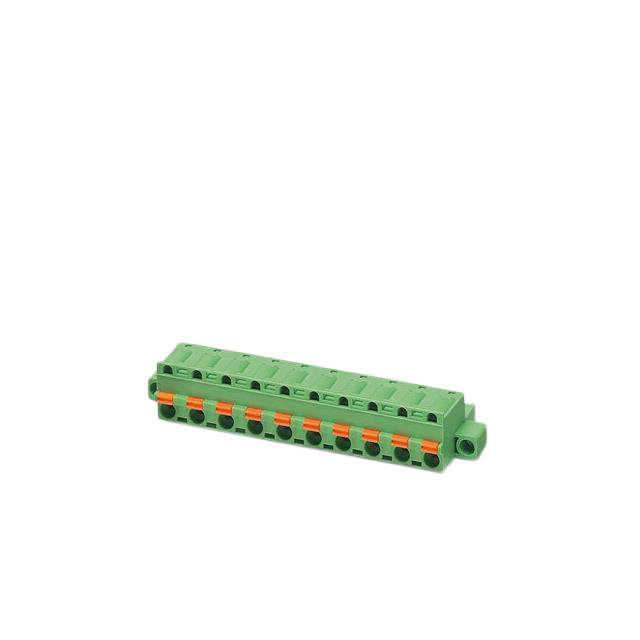

1939824

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 10 POS 7.62MM PITCH PLUG 24-12AWG SPRING

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 10 POS 7.62MM PITCH PLUG 24-12AWG SPRING

Technical Specifications

Parameters and characteristics for this part

Specification	1939824

Color	Green
Contact Mating Finish	Tin
Current - IEC	12 A
Current - UL	10 A
Features	Retention Latches (Non-Wire Side), Mating Flange
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.591 in
Insulation Height	15 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	10
Pitch [x]	0.3 in
Pitch [x]	7.62 mm
Positions Per Level	10
Termination Style	Screwless - Push-In Spring
Type	Plug, Female Sockets
Voltage - IEC	1 kV
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm˛ [Max]	2.5 mm˛
Wire Gauge or Range - mm˛ [Min]	0.2 mm˛
Wire Strip Length	10 mm

Pluggable Terminal Blocks 10 Pos 7.62mm pitch Plug 24-12AWG Spring

Part	Type	Color	Contact Mating Finish	Current - IEC	Termination Style	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Material Flammability Rating	Voltage - IEC	Number of Positions	Mounting Type	Features	Number of Levels	Housing Material	Positions Per Level	Voltage - UL	Wire Strip Length	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Current - UL	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]
Phoenix Contact 1939840	Plug Female Sockets	Green	Tin	12 A	Screwless - Push-In Spring	0.2 mm˛	2.5 mm˛	UL94 V-0	1 kV	12	Free Hanging (In-Line)	Mating Flange Retention Latches (Non-Wire Side)	1	Polyamide (PA) Nylon	12	300 V	10 mm	12 AWG	26 AWG	10 A	0.3 in	7.62 mm	0.591 in	15 mm
Phoenix Contact 1939824	Plug Female Sockets	Green	Tin	12 A	Screwless - Push-In Spring	0.2 mm˛	2.5 mm˛	UL94 V-0	1 kV	10	Free Hanging (In-Line)	Mating Flange Retention Latches (Non-Wire Side)	1	Polyamide (PA) Nylon	10	300 V	10 mm	12 AWG	26 AWG	10 A	0.3 in	7.62 mm	0.591 in	15 mm
Phoenix Contact 1939785	Plug Female Sockets	Green	Tin	12 A	Screwless - Push-In Spring			UL94 V-0	1 kV	6	Free Hanging (In-Line)	Mating Flange Retention Latches (Non-Wire Side)	1	Polyamide (PA) Nylon	6	300 V	10 mm	12 AWG	26 AWG	10 A	0.3 in	7.62 mm	0.591 in	15 mm	0.2 mm²	2.5 mm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 10.31
Sager	N/A	50	$ 12.14
		150	$ 11.70

General part information

Pluggable Terminal Blocks 10 Pos 7.62mm pitch Plug 24-12AWG Spring
