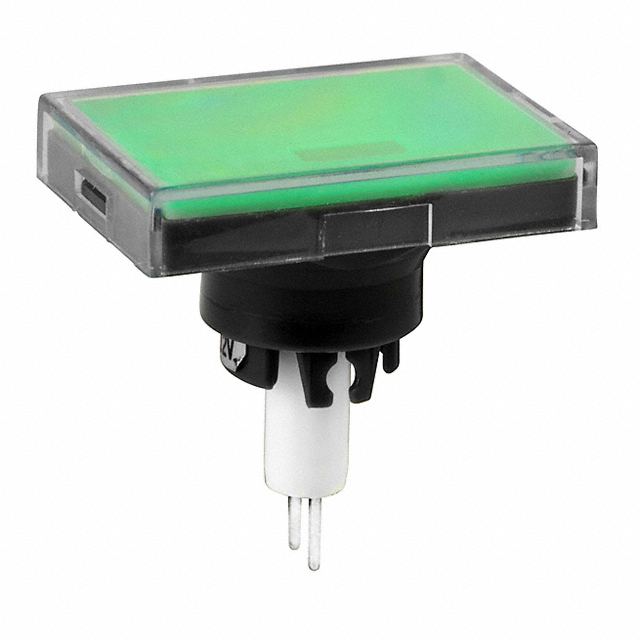

AT3012F12JF

NKK Switches

CAP PUSHBUTTON RECT CLEAR/GREEN

Search across all available documentation for this part.

NKK Switches

CAP PUSHBUTTON RECT CLEAR/GREEN

Technical Specifications

Parameters and characteristics for this part

Specification	AT3012F12JF

Color	Clear, Green
Features	Built-In Green LED
For Use With/Related Products	YB Series
Illumination	Illumination Opening
Mounting Type	Snap Fit
Shape	Rectangular
Size [x]	21 mm
Size [y]	15 mm
Size [z]	4 mm
Switch Type	Pushbutton

Part	Illumination	Size [z]	Size [y]	Size [x]	Shape	Color	Features	Switch Type	Mounting Type	For Use With/Related Products
NKK Switches AT3012F24JC	Illumination Opening	4 mm	15 mm	21 mm	Rectangular	Clear Red	Built-In Green LED	Pushbutton	Snap Fit	YB Series
NKK Switches AT3012D05JB	Illumination Opening	4 mm	15 mm	21 mm	Rectangular	Clear White	Built-In Amber LED	Pushbutton	Snap Fit	YB Series
NKK Switches AT3012C02JB	Illumination Opening	4 mm	15 mm	21 mm	Rectangular	Clear White	Built-In Red LED	Pushbutton	Snap Fit	YB Series
NKK Switches AT3012C12JA	Illumination Opening	4 mm	15 mm	21 mm	Rectangular	Black Clear	Built-In Red LED	Pushbutton	Snap Fit	YB Series
NKK Switches AT3012F05JB	Illumination Opening	4 mm	15 mm	21 mm	Rectangular	Clear White	Built-In Green LED	Pushbutton	Snap Fit	YB Series
NKK Switches AT3012CF02JB	Illumination Opening	4 mm	15 mm	21 mm	Rectangular	Clear White	Built-In Red/Green LED	Pushbutton	Snap Fit	YB Series
NKK Switches AT3012CF24JF	Illumination Opening	4 mm	15 mm	21 mm	Rectangular	Clear Green	Built-In Red/Green LED	Pushbutton	Snap Fit	YB Series
NKK Switches AT3012C05JC	Illumination Opening	4 mm	15 mm	21 mm	Rectangular	Clear Red	Built-In Red LED	Pushbutton	Snap Fit	YB Series
NKK Switches AT3012C02JC	Illumination Opening	4 mm	15 mm	21 mm	Rectangular	Clear Red	Built-In Red LED	Pushbutton	Snap Fit	YB Series
NKK Switches AT3012F12JF	Illumination Opening	4 mm	15 mm	21 mm	Rectangular	Clear Green	Built-In Green LED	Pushbutton	Snap Fit	YB Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rectangular Pushbutton Switch Cap Clear, Green Snap Fit
