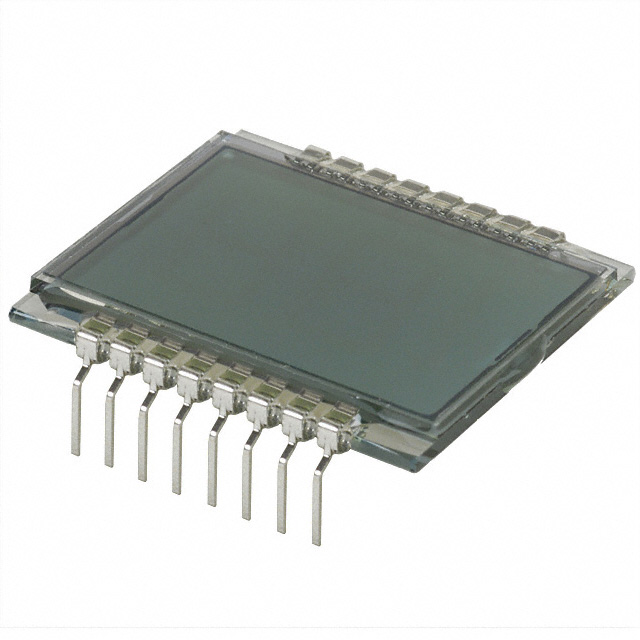

LCD-S2X1C50TR
ActiveLumex Opto/Components Inc.
LCD MOD 2.5DIG 2.5 X 1 REFLECTIV
Deep-Dive with AI
Search across all available documentation for this part.
LCD-S2X1C50TR
ActiveLumex Opto/Components Inc.
LCD MOD 2.5DIG 2.5 X 1 REFLECTIV
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LCD-S2X1C50TR |
|---|---|
| Background Color | Gray |
| Backlight | Without Backlight |
| Character Format | 7-Segment |
| Character Size [custom] | 7 mm |
| Character Size [custom] | 12.17 mm |
| Display Format [x] | 2.5 |
| Display Format [y] | 1 |
| Display Mode | Reflective |
| Display Type | TN - Twisted Nematic |
| Number of Characters | 2.5 |
| Viewing Area [x] | 26 mm |
| Viewing Area [y] | 17.17 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.50 | |
| 10 | $ 1.67 | |||
| 384 | $ 1.28 | |||
| 768 | $ 1.05 | |||
| 1152 | $ 1.00 | |||
| 2304 | $ 0.94 | |||
| 5376 | $ 0.92 | |||
| 10368 | $ 0.91 | |||
Description
General part information
LCD-S2 Series
Character Display Module Reflective 7-Segment TN - Twisted Nematic Without Backlight 30.00mm x 26.17mm x 2.80mm
Documents
Technical documentation and resources
No documents available
