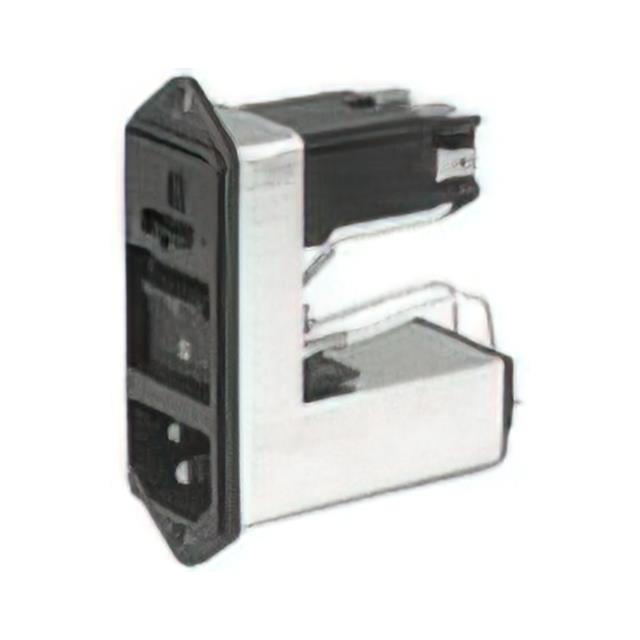

CD21.4501.151

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	CD21.4501.151

Accomodates a Fuse	True
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	2 A
Features	Voltage Selector
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.5 mm
Panel Cutout Dimensions [y]	67.5 mm
Switch Features	Switch On-Off
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Voltage Rating - Appliance Inlet	Connector Type	Current Rating - Filter	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Accomodates a Fuse	Material Flammability Rating	Fuse Holder, Drawer	Ingress Protection	Mounting Type	Current Rating - Appliance Inlet	Termination	Termination	Filter Type	Connector Style	Features	Switch Features	Approval Agency
SCHURTER Inc. CD21.4501.151	250 VAC	Receptacle Male Blades - Module	2 A	28.5 mm	67.5 mm		UL94 V-0	Fuse Holder	IP40	Flange Panel Mount	10 A	0.189 " 4.8 mm	Quick Connect	Filtered (EMI RFI) - Commercial	IEC 320-C14	Voltage Selector	Switch On-Off	cULus ENEC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 53.28

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
