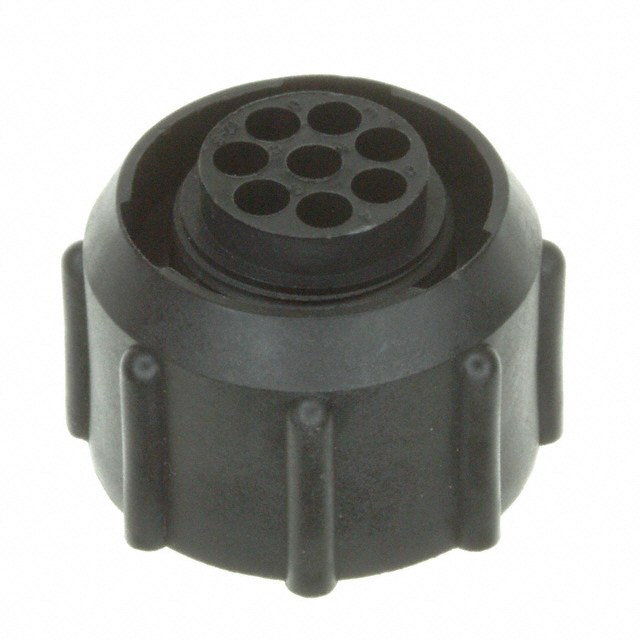

UTP6128S
ActiveSouriau-Sunbank by Eaton
CONN CIRCULAR SKT 8 POS CRIMP ST CABLE MOUNT 8 TERMINAL 1 PORT
Deep-Dive with AI
Search across all available documentation for this part.
UTP6128S
ActiveSouriau-Sunbank by Eaton
CONN CIRCULAR SKT 8 POS CRIMP ST CABLE MOUNT 8 TERMINAL 1 PORT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UTP6128S |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Housing Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 8 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | N |
| Shell Size - Insert | 12-8 |
| Shielding | Unshielded |
| Type | For Female Sockets |
UTP61 Series
| Part | Orientation | Number of Positions | Contact Shape | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Connector Type | Shielding | Type | Contact Type | Mounting Type | Contact Size | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Features | Material Flammability Rating | Note | Shell Size - Insert [Min] [custom] | Shell Size - Insert [Max] [custom] | Shell Size - Insert | Contact Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Souriau-Sunbank by Eaton | N | 19 | Circular | 16 | 19 | Plug Housing | Unshielded | For Female Sockets | Crimp | Free Hanging (In-Line) | 16 | Black | 125 °C | -25 °C | Bayonet Lock | Coupling Nut | UL94 V-0 | Contacts Not Included | ||||
Souriau-Sunbank by Eaton | N | 23 | Circular | Plug Housing | Unshielded | For Female Sockets | Crimp | Free Hanging (In-Line) | 16 | Black | 125 °C | -25 °C | Bayonet Lock | Coupling Nut | UL94 V-0 | Contacts Not Included | 18 | 23 | ||||
Souriau-Sunbank by Eaton | N | 12 | Circular | Plug Housing | Unshielded | For Male Pins | Crimp | Free Hanging (In-Line) | 16 | Black | 125 °C | -25 °C | Bayonet Lock | Coupling Nut | UL94 V-0 | Contacts Not Included | 14-12 | |||||
Souriau-Sunbank by Eaton | N | 4 | Circular | Plug Housing | Unshielded | For Female Sockets | Crimp | Free Hanging (In-Line) | 16 | Black | 125 °C | -25 °C | Bayonet Lock | Coupling Nut | UL94 V-0 | Contacts Not Included | 10-4 | |||||
Souriau-Sunbank by Eaton | N | 8 | Circular | Plug Housing | Unshielded | For Male Pins | Crimp | Free Hanging (In-Line) | Black | 125 °C | -25 °C | Bayonet Lock | Coupling Nut | UL94 V-0 | Contacts Not Included | 14-8 | 12 (4) 16 (4) | |||||
Souriau-Sunbank by Eaton | N | 23 | Circular | Plug Housing | Unshielded | For Male Pins | Crimp | Free Hanging (In-Line) | 16 | Black | 125 °C | -25 °C | Bayonet Lock | Coupling Nut | UL94 V-0 | Contacts Not Included | 18 | 23 | ||||
Souriau-Sunbank by Eaton | N | 8 | Circular | Plug Housing | Unshielded | For Female Sockets | Crimp | Free Hanging (In-Line) | Black | 125 °C | -25 °C | Bayonet Lock | Coupling Nut | UL94 V-0 | Contacts Not Included | 14-8 | 12 (4) 16 (4) | |||||
Souriau-Sunbank by Eaton | N | 8 | Circular | Plug Housing | Unshielded | For Female Sockets | Crimp | Free Hanging (In-Line) | 16 | Black | 125 °C | -25 °C | Bayonet Lock | Coupling Nut | UL94 V-0 | Contacts Not Included | 12-8 | |||||
Souriau-Sunbank by Eaton | N | 19 | Circular | 16 | 19 | Plug Housing | Unshielded | For Male Pins | Crimp | Free Hanging (In-Line) | 16 | Black | 125 °C | -25 °C | Bayonet Lock | Coupling Nut | UL94 V-0 | Contacts Not Included | ||||
Souriau-Sunbank by Eaton | N | 12 | Circular | Plug Housing | Unshielded | For Female Sockets | Crimp | Free Hanging (In-Line) | 16 | Black | 125 °C | -25 °C | Bayonet Lock | Coupling Nut | UL94 V-0 | Contacts Not Included | 14-12 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.34 | |
| 10 | $ 17.63 | |||
| 25 | $ 16.71 | |||
| 50 | $ 16.47 | |||
| 100 | $ 14.53 | |||
| 250 | $ 13.56 | |||
| 500 | $ 13.27 | |||
Description
General part information
UTP61 Series
8 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
