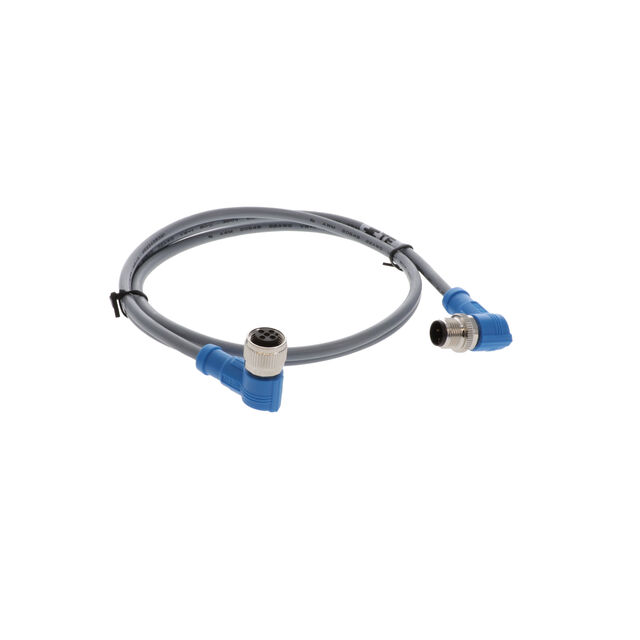

T4162224003-002
ActiveTE Connectivity Raychem Cable Protection
CBL 5POS RCPT RA TO PLUG 3.28'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4162224003-002
ActiveTE Connectivity Raychem Cable Protection
CBL 5POS RCPT RA TO PLUG 3.28'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T4162224003-002 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 |
| 1st Connector Number of Positions Loaded | 3 |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Receptacle, Right Angle |
| 2nd Connector Gender | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 5 |
| 2nd Connector Number of Positions Loaded | 3 |
| 2nd Connector Shell Size - Insert | M12 |
| 2nd Connector Type | Plug, Right Angle |
| Assembly Configuration | Standard |
| Cable Material | Polyurethane (PUR) |
| Cable Type | Round |
| Color | Gray |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Length [x] | 1 m |
| Length [x] | 3.28 ft |
| Shielding | Shielded |
| Usage | Industrial Environments |
T41622 Series
| Part | Cable Material | 1st Connector Gender | 2nd Connector Number of Positions Loaded | Ingress Protection | Usage | Color | 1st Connector Type | 1st Connector Number of Positions | 2nd Connector Mounting Type | Length [x] | Length [x] | 2nd Connector Gender | Shielding | 1st Connector Number of Positions Loaded | 2nd Connector Number of Positions | 2nd Connector Type | 1st Connector Mounting Type | 1st Connector Orientation | Assembly Configuration | Cable Type | 1st Connector Shell Size - Insert | 2nd Connector Shell Size - Insert | 2nd Connector Number of Positions Loaded | 1st Connector Number of Positions Loaded | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Polyurethane (PUR) | Male Pins | 4 positions | IP67 - Dust Tight Waterproof | Industrial Environments | Gray | Receptacle Right Angle | 5 | Free Hanging (In-Line) | 1.64 ft | 500 mm | Female Sockets | Shielded | 4 | 5 | Plug Right Angle | Free Hanging (In-Line) | A | Standard | Round | M12 | M12 | ||||
TE Connectivity Raychem Cable Protection | Polyurethane (PUR) | Male Pins | IP67 - Dust Tight Waterproof | Industrial Environments | Gray | Receptacle Right Angle | 5 | Free Hanging (In-Line) | 1.64 ft | 500 mm | Female Sockets | Shielded | 5 | Plug | Free Hanging (In-Line) | A | Standard | Round | M12 | M12 | All | All | ||||
TE Connectivity Raychem Cable Protection | Polyvinyl Chloride (PVC) | Male Pins | 3 | IP67 - Dust Tight Waterproof | Industrial Environments | Black | Receptacle Right Angle | 5 | Free Hanging (In-Line) | Female Sockets | Shielded | 3 | 5 | Plug Right Angle | Free Hanging (In-Line) | A | Standard | Round | M12 | M12 | 4.92 ' | 1.5 m | ||||
TE Connectivity Raychem Cable Protection | Polyurethane (PUR) | Male Pins | IP67 - Dust Tight Waterproof | Industrial Environments | Gray | Receptacle Right Angle | 4 | Free Hanging (In-Line) | 1.64 ft | 500 mm | Female Sockets | Shielded | 4 | Plug | Free Hanging (In-Line) | A | Standard | Round | M12 | M12 | All | All | ||||
TE Connectivity Raychem Cable Protection | Polyvinyl Chloride (PVC) | Male Pins | 4 positions | IP67 - Dust Tight Waterproof | Industrial Environments | Black | Receptacle Right Angle | 5 | Free Hanging (In-Line) | Female Sockets | Shielded | 4 | 5 | Plug Right Angle | Free Hanging (In-Line) | A | Standard | Round | M12 | M12 | ||||||
TE Connectivity Raychem Cable Protection | Polyvinyl Chloride (PVC) | Male Pins | 4 positions | IP67 - Dust Tight Waterproof | Industrial Environments | Black | Receptacle Right Angle | 5 | Free Hanging (In-Line) | 1.64 ft | 500 mm | Female Sockets | Shielded | 4 | 5 | Plug Right Angle | Free Hanging (In-Line) | A | Standard | Round | M12 | M12 | ||||
TE Connectivity Raychem Cable Protection | Polyvinyl Chloride (PVC) | Male Pins | 2 | IP67 - Dust Tight Waterproof | Industrial Environments | Black | Receptacle Right Angle | 5 | Free Hanging (In-Line) | 1.64 ft | 500 mm | Female Sockets | Shielded | 2 | 5 | Plug Right Angle | Free Hanging (In-Line) | A | Standard | Round | M12 | M12 | ||||
TE Connectivity Raychem Cable Protection | Polyurethane (PUR) | Male Pins | 4 positions | IP67 - Dust Tight Waterproof | Industrial Environments | Gray | Receptacle Right Angle | 5 | Free Hanging (In-Line) | 3.28 ft | 1 m | Female Sockets | Shielded | 4 | 5 | Plug | Free Hanging (In-Line) | A | Standard | Round | M12 | M12 | ||||
TE Connectivity Raychem Cable Protection | Polyurethane (PUR) | Male Pins | 3 | IP67 - Dust Tight Waterproof | Industrial Environments | Gray | Receptacle Right Angle | 5 | Free Hanging (In-Line) | 3.28 ft | 1 m | Female Sockets | Shielded | 3 | 5 | Plug Right Angle | Free Hanging (In-Line) | A | Standard | Round | M12 | M12 | ||||
TE Connectivity Raychem Cable Protection | Polyurethane (PUR) | Male Pins | 4 positions | IP67 - Dust Tight Waterproof | Industrial Environments | Gray | Receptacle Right Angle | 5 | Free Hanging (In-Line) | Female Sockets | Shielded | 4 | 5 | Plug Right Angle | Free Hanging (In-Line) | A | Standard | Round | M12 | M12 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 15.58 | |
| 10 | $ 14.51 | |||
Description
General part information
T41622 Series
Circular Cable Assembly Shielded 3.28' (1.00m)
