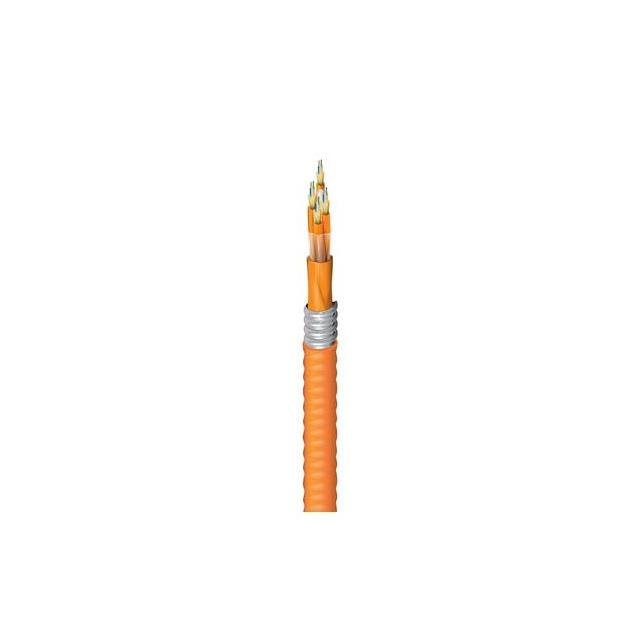

FI2D024FJ

Active

Belden Inc.

CBL FIBER OPTIC

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC

Technical Specifications

Parameters and characteristics for this part

Specification	FI2D024FJ

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	50 µm
Features	24
Features	Armored
Jacket (Insulation) Diameter [diameter]	23.62 mm
Jacket (Insulation) Diameter [diameter]	0.93 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Orange
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Ratings	OFCR
Style	Multiple Fibers
Tensile Strength	40.8 kg
Type	Multimode

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Core Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Jacket Color	Tensile Strength	Jacket (Insulation) Material	Type	Features	Features	Style	Cladding Diameter [diameter]
Belden Inc. FI2D024R9	8.26 mm	0.325 in	50 µm	-20 C	70 °C	OFNR	Orange	40.8 kg	Poly-Vinyl Chloride (PVC)	Multimode	24	Rip Cord	Multiple Fibers	125 µm
Belden Inc. FI2D024FJ	23.62 mm	0.93 in	50 µm	-20 C	70 °C	OFCR	Orange	40.8 kg	Poly-Vinyl Chloride (PVC)	Multimode	24	Armored	Multiple Fibers	125 µm
Belden Inc. FI2D024P9	8.38 mm	0.33 in	50 µm	0 °C	70 °C	OFNP	Orange	40.8 kg	Poly-Vinyl Chloride (PVC)	Multimode	24	Rip Cord	Multiple Fibers	125 µm
Belden Inc. FI2D024AJ	21.36 mm	0.841 in	50 µm	0 °C	70 °C	OFCP	Orange	40.8 kg	Poly-Vinyl Chloride (PVC)	Multimode	24	Armored	Multiple Fibers	125 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fiber Optic Cable Orange Multimode 125µm
