19407030401

Active

HARTING Technology Group

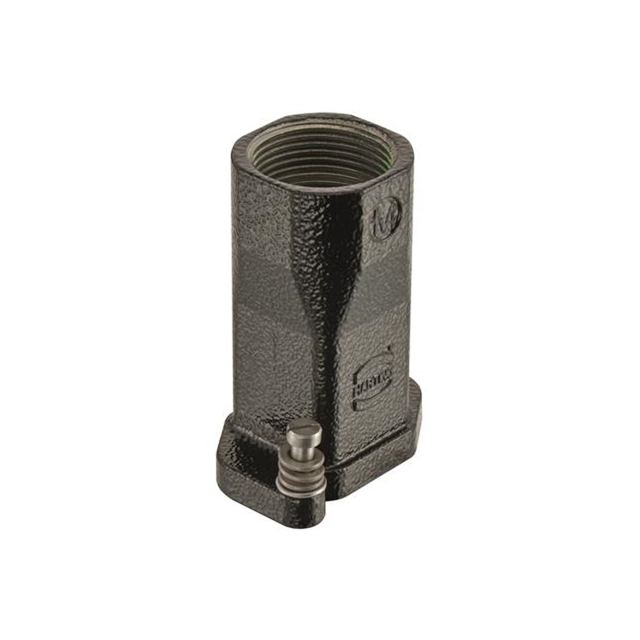

3A HPR HOOD TOP ENTRY, TOGGLE LOCKING, EPOXY, M25

Search across all available documentation for this part.

Active

HARTING Technology Group

3A HPR HOOD TOP ENTRY, TOGGLE LOCKING, EPOXY, M25

Technical Specifications

Parameters and characteristics for this part

Part	Thread Size	Ingress Protection	Connector Type	Housing Material	Housing Finish	Housing Color	Size	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Style	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 19407030401	M25	IP65 IP68	Hood	Zinc Die Cast	Powder Coated	Black	3 A	Screw Locks on Hood	125 °C	-40 °C	Top Entry
HARTING Technology Group 19407030950	M20		Base - Panel Mount 90°	Zinc Die Cast	Powder Coated	Black	3 A	Screw Locks on Hood	125 °C	-40 °C	Side Entry
HARTING Technology Group 19407030411	M25		Hood	Zinc Die Cast	Epoxy Powder Paint	Black	3 A	Screw Locks on Hood	125 °C	-40 °C	Top Entry	1.276 in	45.5 mm	1.791 in	60 mm	32.4 mm	2.362 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M25 3A IP65/IP68 - Dust Tight, Water Resistant, Waterproof
