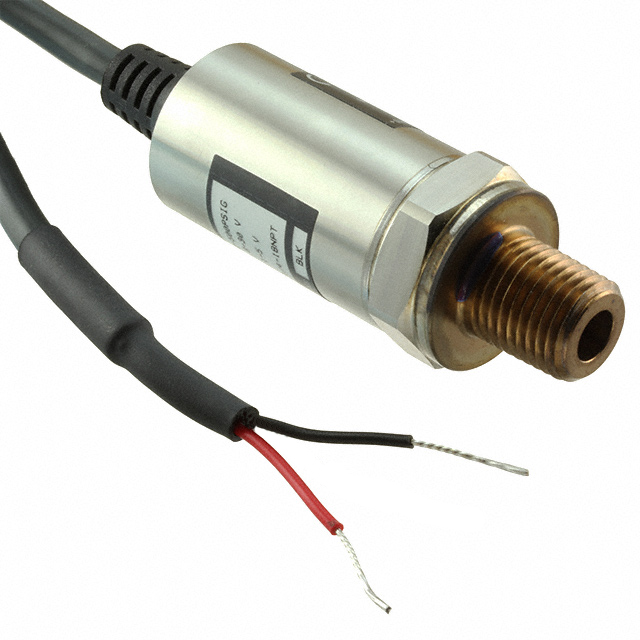

M5251-000005-01KPG

Active

TE Connectivity Measurement Specialties

TRANSDUCER 4-20MA 1000PSI

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

TRANSDUCER 4-20MA 1000PSI

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Features	Operating Pressure	Operating Pressure	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Output Type	Maximum Pressure	Maximum Pressure	Accuracy	Applications	Port Style	Pressure Type	Output [Max]	Output [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Maximum Pressure [Max]	Maximum Pressure [Max]
TE Connectivity Measurement Specialties M5251-000005-05KPG	Cable	125 °C	-40 °C	Temperature Compensated	34473.79 kPa	5000 PSI	NPT	0.25 "	6.35 mm	Male	Analog Current	10000 PSI	68947.57 kPa	0.25 %	Industrial Automation	Threaded	Vented Gauge	20 mA	4 mA	30 VDC	9 V	Cylinder
TE Connectivity Measurement Specialties M5251-000005-01KPG	Cable	125 °C	-40 °C	Temperature Compensated	6894.76 kPa	1000 PSI	NPT	0.25 "	6.35 mm	Male	Analog Current			0.25 %	Industrial Automation	Threaded	Vented Gauge	20 mA	4 mA	30 VDC	9 V	Cylinder	2000 PSI	13789.51 kPa
TE Connectivity Measurement Specialties M5251-000005-050PG	Cable	125 °C	-40 °C	Temperature Compensated	344.74 kPa	50 PSI	NPT	0.25 "	6.35 mm	Male	Analog Current			0.25 %	Industrial Automation	Threaded	Vented Gauge	20 mA	4 mA	30 VDC	9 V	Cylinder	100 PSI	689.48 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRANSDUCER 4-20MA 1000PSI
