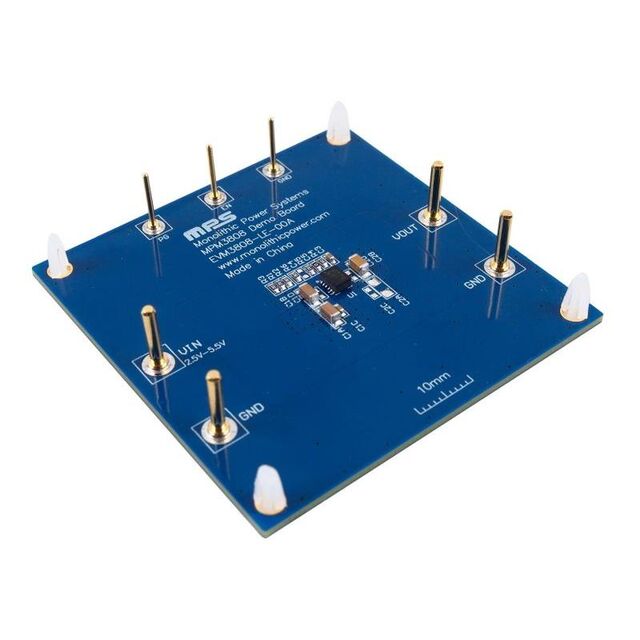

EVM3808-LE-00A
ActiveMONOLITHIC POWER SYSTEMS (MPS)
EVAL BOARD FOR MPM3808-AEC1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EVM3808-LE-00A |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 3 A |
| Frequency - Switching | 2.4 MHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Cable(s), Board(s) |
| Utilized IC / Part | MPM3808-AEC1 |
| Voltage - Input [Max] | 5.5 V |
| Voltage - Input [Min] | 2.5 V |
| Voltage - Output | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 50.00 | |
Description
General part information
MPM3808 Series
MPM3808-AEC1 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
