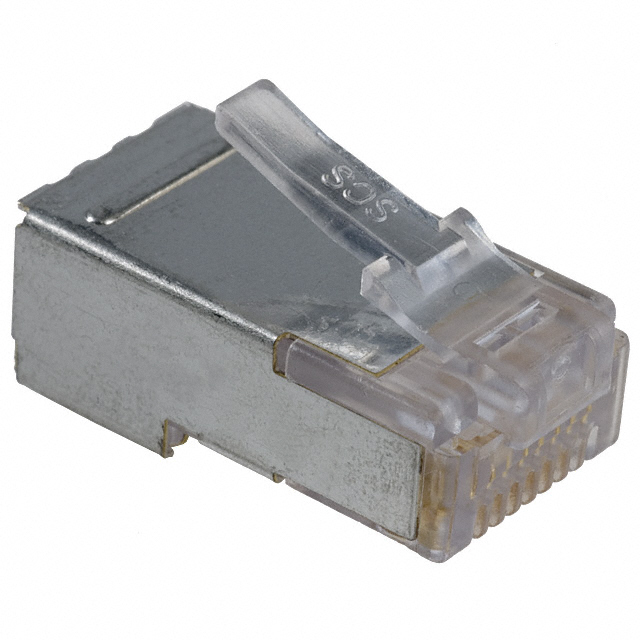

SS-37200-032

Active

BEL MAGNETIC SOLUTIONS

CONN MOD PLUG 8P8C SHIELDED

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

CONN MOD PLUG 8P8C SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	SS-37200-032

Cable Type	Round Cable, Solid, Stranded Wires
Color	Translucent - Clear
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Housing Material	Polycarbonate (PC)
Length [x]	22.78 mm
Length [x]	0.897 in
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat5e
Shield Material	Brass
Shielding	Shielded
Termination	IDC
Voltage Rating	150 VDC

Part	Shield Material	Current Rating (Amps)	Ratings	Shielding	Connector Type	Cable Type	Contact Finish Thickness	Contact Finish Thickness	Color	Housing Material	Number of Positions/Contacts	Contact Material	Termination	Length	Length	Contact Finish	Voltage Rating	Length [x]	Length [x]
BEL MAGNETIC SOLUTIONS SS-37200-001	Brass	1.5 A	Cat5e	Shielded	Plug	Round Cable Solid Stranded Wires	50 µin	1.27 µm	Translucent - Clear	Polycarbonate (PC)	8p8c (RJ45 Ethernet)	Phosphor Bronze	IDC	0.95 "	24.13 mm	Gold	150 VDC
BEL MAGNETIC SOLUTIONS SS-37200-032	Brass	1.5 A	Cat5e	Shielded	Plug	Round Cable Solid Stranded Wires	50 µin	1.27 µm	Translucent - Clear	Polycarbonate (PC)	8p8c (RJ45 Ethernet)	Copper Alloy	IDC			Gold	150 VDC	22.78 mm	0.897 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 0.71
Newark	Each	1000	$ 0.90

General part information

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat5e IDC
