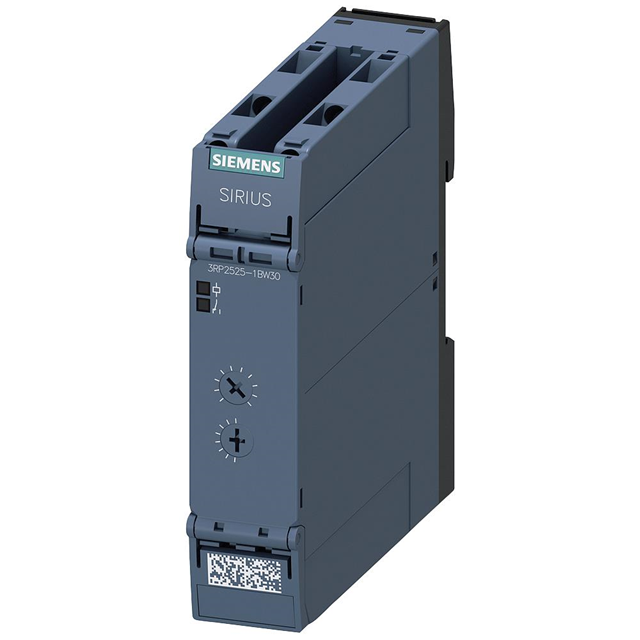

3RP25251BW30

Active

Siemens

RELAY TIME DELAY 100HR DIN RAIL

Search across all available documentation for this part.

Active

Siemens

RELAY TIME DELAY 100HR DIN RAIL

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Circuit	Voltage - Supply [Max]	Voltage - Supply [Min]	Timing Initiate Method	Delay Time [Max]	Delay Time [Min]	Mounting Type	Function	Timing Adjustment Method	Relay Type	Contact Rating @ Voltage
Siemens 3RP25251BW30	Screw Terminal	DPDT (2 Form C)	240 VAC	12 VAC	Input Voltage	100 Hrs	0.05 Sec	DIN Rail	On-Delay	Screwdriver Slot	Mechanical Relay
Siemens 3RP25252BW30	Spring Terminal	DPDT (2 Form C)	240 VAC	12 VAC	Input Voltage	100 Hrs	0.05 Sec	DIN Rail	On-Delay	Screwdriver Slot	Mechanical Relay	3 A 250 VAC
Siemens 3RP25252AW30	Spring Terminal		240 VAC	12 VAC	Input Voltage	100 Hrs	0.05 Sec	DIN Rail	On-Delay	Screwdriver Slot	Mechanical Relay	3 A 250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

On-Delay Time Delay Relay DPDT (2 Form C) 0.05 Sec ~ 100 Hrs Delay DIN Rail
