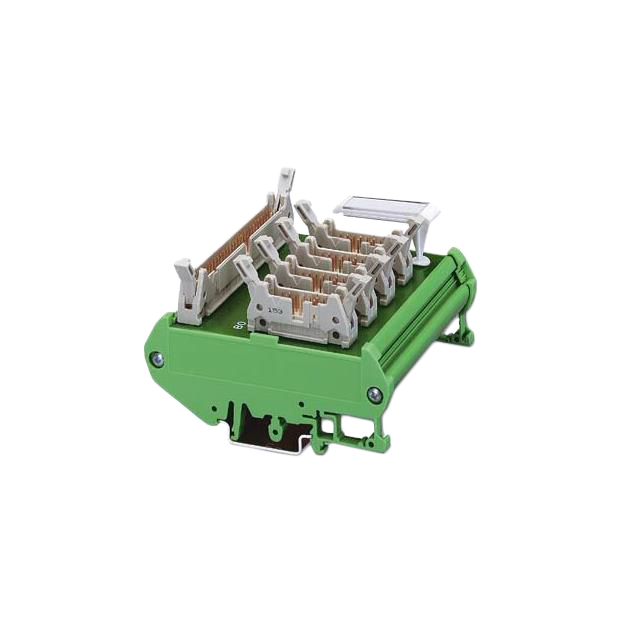

2284594

Active

Phoenix Contact

CONN TERM BLOCK

Search across all available documentation for this part.

Active

Phoenix Contact

CONN TERM BLOCK

Technical Specifications

Parameters and characteristics for this part

Specification	2284594

Convert From (Adapter End)	4 Rows, 14 Pos
Convert From (Adapter End)	Rectangular Connector (4)
Convert To (Adapter End)	50 Pos, 2 Rows
Convert To (Adapter End)	Male Pins, Rectangular Connector
Mounting Type	DIN Rail

Terminal Block Interface Modules FLKM-D25 SUB/B

Part	Convert To (Adapter End)	Convert To (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)	Mounting Type	Positions / Poles	Wire Gauge [Min]	Wire Gauge [Max]	Width [x]	Width [x]	Length	Length	Control Side Connection	Process Side Connection	Current Rating (Per Contact)	Voltage - Rated	Features	Operating Temperature [Max]	Operating Temperature [Min]	Control Side Cable Retainer
Phoenix Contact 2284594	2 Rows 50 Pos	Male Pins Rectangular Connector	4 Rows 14 Pos	Rectangular Connector (4)	DIN Rail
Phoenix Contact 5541234						50	12 AWG	24 AWG	3.031 "	76.99 mm	5.76 in	146.3 mm	D-Shaped - Telco	Terminal Blocks - Screw Connection	1 A	60 V
Phoenix Contact 2281209						25	12 AWG	24 AWG	3.031 "	76.99 mm	3.102 in	78.79 mm	D-Sub Female	Terminal Blocks - Screw Connection	2.5 A	125 V	Label Holder	50 °C	-20 C	Jackscrew Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 208.29

General part information

Terminal Block Interface Modules FLKM-D25 SUB/B
