56590-502
ActiveLaird Thermal Systems, Inc.

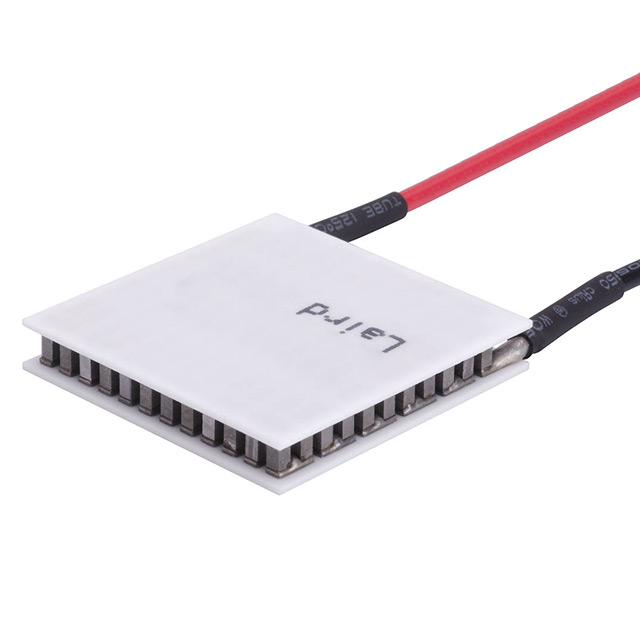

PELTIER MOD CP14,71,10,L1,W4.5
Deep-Dive with AI
Search across all available documentation for this part.
56590-502
ActiveLaird Thermal Systems, Inc.
PELTIER MOD CP14,71,10,L1,W4.5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 56590-502 |
|---|---|
| Current - Max [Max] | 3.9 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 4.7 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 18.7 W |
| Resistance | 1.92 Ohms |
| Size / Dimension [x] | 29.72 mm |
| Size / Dimension [y] | 29.72 mm |
| Voltage - Max [Max] | 8.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.82 | |
| 5 | $ 25.30 | |||
| 20 | $ 24.54 | |||
| 40 | $ 23.79 | |||
| 60 | $ 23.18 | |||
| 100 | $ 22.57 | |||
Description
General part information
56590 Series
Peltier Module 18.7W @ 25°C 3.9 A 80°C
