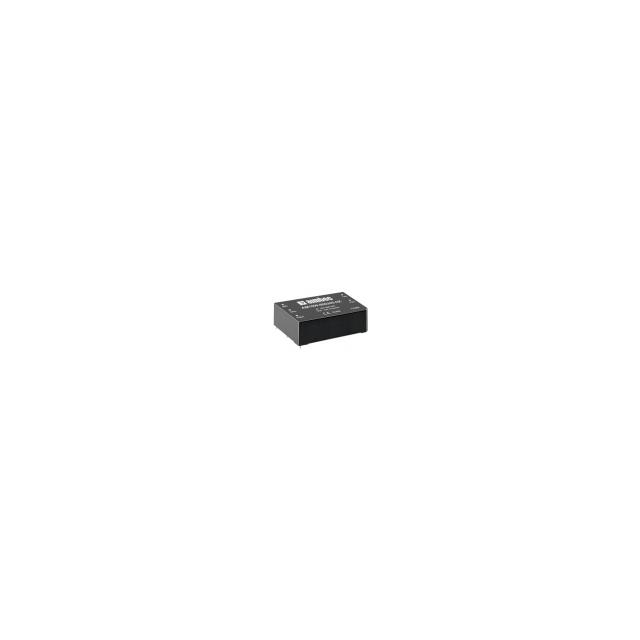

AM10W-60005S-NZ
Obsoleteaimtec
DC DC CONVERTER 5V 10W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AM10W-60005S-NZ
Obsoleteaimtec
DC DC CONVERTER 5V 10W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AM10W-60005S-NZ |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | 72 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 2.76 in |
| Size / Dimension [x] | 70 mm |
| Size / Dimension [y] | 1.89 in |
| Size / Dimension [y] | 48 mm |
| Size / Dimension [z] | 0.93 in |
| Size / Dimension [z] | 23.5 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 1000 V |
| Voltage - Input (Min) [Min] | 100 VDC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.02 | |
Description
General part information
AM10W Series
Isolated Module DC DC Converter 1 Output 5V 2A 100V - 1000V Input
