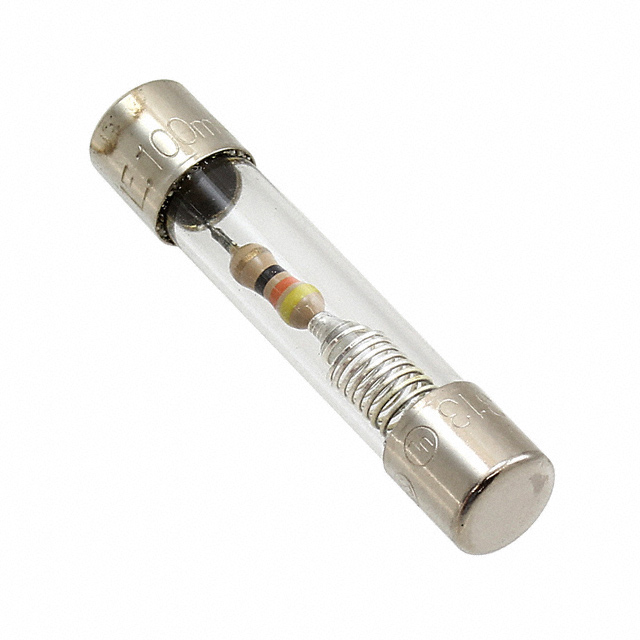

0313.250VXP - 313 Series

0313.250VXP

Active
Littelfuse/Commercial Vehicle Products

FUSE CARTRIDGE SLOW BLOW ACTING 0.25A 250V HOLDER CARTRIDGE 6.3 X 32MM GLASS BULK CE/CSA/UKCA/UL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAftermarket Products CatalogDatasheet+4
0313.250VXP - 313 Series

0313.250VXP

Active
Littelfuse/Commercial Vehicle Products

FUSE CARTRIDGE SLOW BLOW ACTING 0.25A 250V HOLDER CARTRIDGE 6.3 X 32MM GLASS BULK CE/CSA/UKCA/UL

Deep-Dive with AI

DocumentsAftermarket Products CatalogDatasheet+4

Technical Specifications

Parameters and characteristics for this part

Specification0313.250VXP
Approval AgencyUL, CSA, CE
Breaking Capacity @ Rated Voltage35 A
Current Rating (Amps)0.25 A
DC Cold Resistance4.27 Ohms
Melting I²t0.385
Mounting TypeRequires Holder
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Package / Case3AB, 3AG
Package / Case [x]1/4
Package / Case [y]1-1/4
Response TimeSlow Blow
Size / Dimension [diameter]0.25 in
Size / Dimension [diameter]6.35 mm
Size / Dimension [x]31.75 mm
Size / Dimension [x]1.25 "
Voltage Rating - AC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 4.95
5$ 4.78
10$ 4.61
50$ 3.58
100$ 2.99
250$ 2.90
500$ 2.47
1000$ 2.35
NewarkEach 1$ 4.99
10$ 4.41
25$ 4.09
50$ 3.76
100$ 3.34
500$ 3.04
1000$ 2.69
2500$ 2.50

Description

General part information

0313.250 Series

The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.
