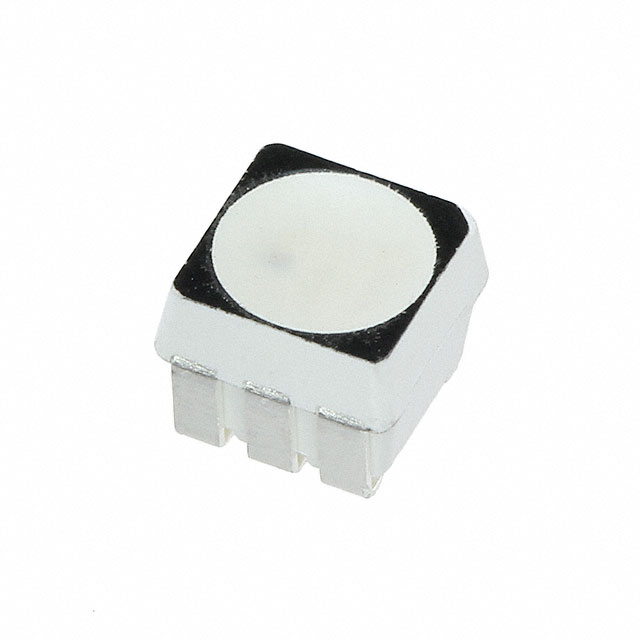

ASMB-TTB0-0A3A2
ObsoleteBroadcom Limited
LED RGB DIFFUSED 6PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
ASMB-TTB0-0A3A2
ObsoleteBroadcom Limited
LED RGB DIFFUSED 6PLCC SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASMB-TTB0-0A3A2 |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Independent |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] | 2.8 mm |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 790 mcd |
| Millicandela Rating [custom] | 2400 mcd |
| Millicandela Rating [custom] | 500 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, J-Lead |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 3.5 mm |
| Supplier Device Package | 6-PLCC |
| Viewing Angle | 115 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 2.9 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2.1 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2.9 V |
| Wavelength - Peak [custom] | 521 nm |
| Wavelength - Peak [custom] | 635 nm |
| Wavelength - Peak [custom] | 464 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ASMB-TTB0 Series
Red, Green, Blue (RGB) 621nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 2.9V Green, 2.9V Blue 6-SMD, J-Lead
