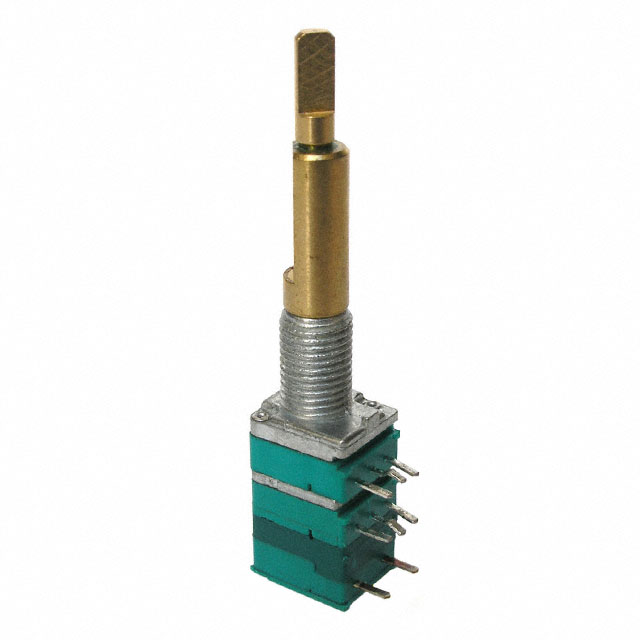

PTJ902-030F-103B2
ActiveBourns Inc.
POT 10K OHM 1/20W CARBON LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PTJ902-030F-103B2
ActiveBourns Inc.
POT 10K OHM 1/20W CARBON LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PTJ902-030F-103B2 |
|---|---|
| Actuator Diameter | 6 mm, 0.236 in |
| Actuator Diameter | 0.138 in, 3.5 mm |
| Actuator Length [z] | 30 mm |
| Actuator Length [z] | 1.181 in |
| Actuator Type | Flatted |
| Adjustment Type | Side Adjustment |
| Built in Switch | Push-Push, SPDT |
| Bushing Thread | M9 x 0.75 |
| Number of Gangs | 2 |
| Number of Turns | 1 |
| Power (Watts) | 0.05 W |
| Power (Watts) | 50 mW |
| Resistance (Ohms) | 10k |
| Resistive Material | Carbon |
| Rotation | 300 ░ |
| Size - Body [x] | 0.447 in |
| Size - Body [x] | 11.35 mm |
| Size - Body [y] | 0.374 in |
| Size - Body [y] | 9.5 mm |
| Taper | Linear |
| Termination Style | Board Locks, PC Pins |
| Tolerance | 20 % |
PTJ902 Series
| Part | Resistive Material | Number of Gangs | Actuator Length [z] | Actuator Length [z] | Power (Watts) | Power (Watts) | Rotation | Bushing Thread | Size - Body [y] | Size - Body [x] | Size - Body [y] | Size - Body [x] | Tolerance | Number of Turns | Resistance (Ohms) | Taper | Built in Switch | Termination Style | Actuator Diameter | Actuator Type | Adjustment Type | Actuator Diameter | Power (Watts) | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | Carbon | 2 | 30 mm | 1.181 in | 0.025 W | 0.025 W | 300 ░ | M9 x 0.75 | 0.374 in | 0.447 in | 9.5 mm | 11.35 mm | 20 % | 1 | 100 kOhms | Logarithmic | Push-Push SPDT | Board Locks PC Pins | 0.185 in 0.264 in 4.7 mm 6.7 mm | Slotted | Side Adjustment | |||
Bourns Inc. | Carbon | 2 | 30 mm | 1.181 in | 0.05 W | 300 ░ | M9 x 0.75 | 0.374 in | 0.447 in | 9.5 mm | 11.35 mm | 20 % | 1 | Linear | Push-Push SPDT | Board Locks PC Pins | 0.138 in 3.5 mm | Flatted | Side Adjustment | 0.236 in 6 mm | 50 mW | 10k | ||
Bourns Inc. | Carbon | 2 | 30 mm | 1.181 in | 0.025 W | 0.025 W | 300 ░ | M9 x 0.75 | 0.374 in | 0.447 in | 9.5 mm | 11.35 mm | 20 % | 1 | Logarithmic | Push-Push SPDT | Board Locks PC Pins | 0.138 in 3.5 mm | Flatted | Side Adjustment | 0.236 in 6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1000 | $ 3.95 | |
Description
General part information
PTJ902 Series
10k Ohm 2 Gang Linear Panel Mount Potentiometer 1.0 Turns Carbon 0.05W, 1/20W PC Pins, Board Locks
