02301.46.01

Active

Prysmian Group

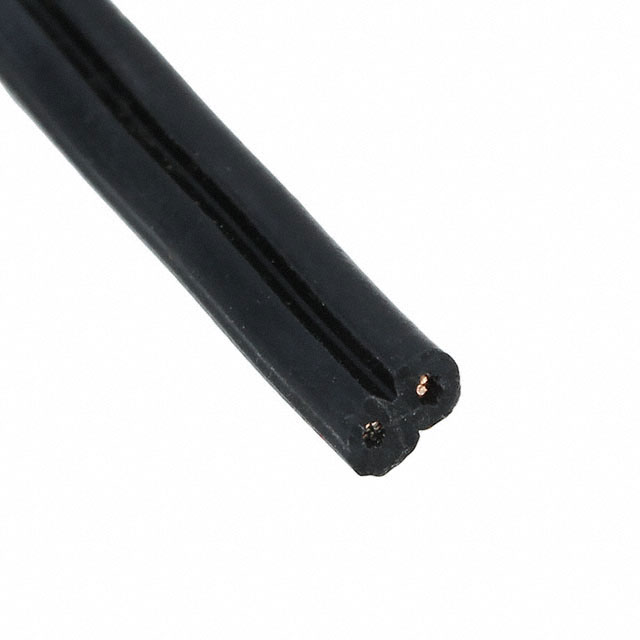

CABLE 2COND 18AWG BLACK

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 2COND 18AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	02301.46.01

Cable Type	Multi-Conductor
Conductor Material	Copper, Tinned, Copper, Bare
Conductor Strand [custom]	41 strands
Conductor Strand [custom]	34 AWG
Jacket (Insulation) Diameter [diameter]	5.33 mm
Jacket (Insulation) Diameter [diameter]	0.21 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.762 mm
Jacket (Insulation) Thickness	0.03 in
Jacket Color	Black
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Voltage	300 V
Wire Gauge	18 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Wire Gauge	Jacket Color	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Conductor Material	Length	Length
Prysmian Group 02301.46.01	5.33 mm	0.21 in	2	-20 C	60 °C	41 strands	34 AWG	Poly-Vinyl Chloride (PVC)	18 AWG	Black	Multi-Conductor	0.762 mm	0.03 in	300 V	Copper Bare Copper Tinned
Prysmian Group 02301.R5.02	5.33 mm	0.21 in	2	-20 C	60 °C	41 strands	34 AWG	Poly-Vinyl Chloride (PVC)	18 AWG		Multi-Conductor	0.762 mm	0.03 in	300 V	Copper Bare Copper Tinned	3000 "	76.2 m
Prysmian Group 02301.R5.08	5.33 mm	0.21 in	2	-20 C	60 °C	41 strands	34 AWG	Poly-Vinyl Chloride (PVC)	18 AWG	Brown	Multi-Conductor	0.762 mm	0.03 in	300 V	Copper Bare Copper Tinned	3000 "	76.2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 0.28

General part information

2 Conductor Multi-Conductor Cable Black 18 AWG 5000' (1524.0m)

Technical documentation and resources

No documents available
