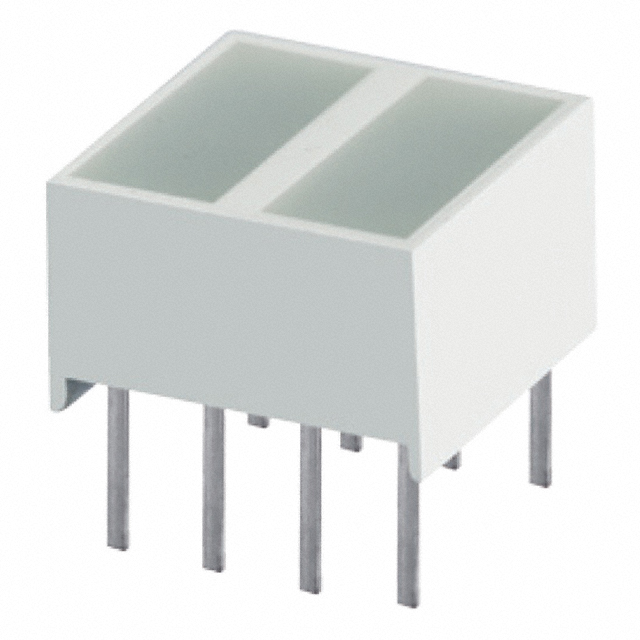

XEMRD100M

Obsolete

SunLED

LED CBI 8.89X3.81MM 2SEG RD VERT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XEMRD100M

Obsolete

SunLED

LED CBI 8.89X3.81MM 2SEG RD VERT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XEMRD100M

Color	Red
Configuration	DIP, Bar - 2 Wide
Current	155 mA
Lens Size [x]	8.89 mm
Lens Size [y]	3.81 mm
Lens Style	Rectangle with Flat Top
Lens Type	Diffused, White
Millicandela Rating	31 mcd
Mounting Type	Through Hole
Voltage Rating	1.85 V
Wavelength - Peak	655 nm

XEMRD100 Series

Part	Wavelength - Peak	Voltage Rating	Mounting Type	Millicandela Rating	Lens Style	Lens Type	Lens Size [x]	Lens Size [y]	Current	Configuration	Color
SunLED XEMRD100M	655 nm	1.85 V	Through Hole	31 mcd	Rectangle with Flat Top	Diffused White	8.89 mm	3.81 mm	155 mA	Bar - 2 Wide DIP	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XEMRD100 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - 2 Wide, DIP Red (x 2) Diffused, White 1.85V 155mA Rectangle with Flat Top 8.89mm x 3.81mm Through Hole
