01094-102

Active

Sensata-BEI Sensors

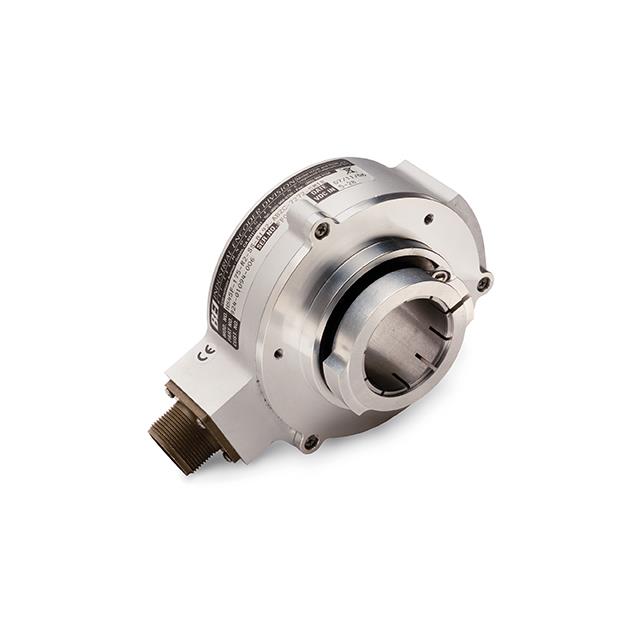

ROTARY ENCODER OPTICAL 2048PPR

Search across all available documentation for this part.

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 2048PPR

Technical Specifications

Parameters and characteristics for this part

Specification	01094-102

Actuator Type	Hole for Shaft
Built in Switch	False
Detent	False
Encoder Type	Optical
Mounting Type	Chassis Mount, Motors
Orientation	User Selectable
Output Type	Quadrature with Index (Incremental)
Pulses per Revolution	2048
Rotational Life (Cycles Min) [Min]	7.5B
Termination Style	Connector
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	5 V

Part	Actuator Type	Detent	Output Type	Pulses per Revolution	Mounting Type	Orientation	Built in Switch	Termination Style	Encoder Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Rotational Life (Cycles Min)	Rotational Life (Cycles Min) [Min]
Sensata-BEI Sensors 01094-022	Concentric		Quadrature with Index (Incremental)	720	Chassis Mount Motors	User Selectable		Connector	Optical	5 V	28 V	1M
Sensata-BEI Sensors 01094-102	Hole for Shaft		Quadrature with Index (Incremental)	2048	Chassis Mount Motors	User Selectable		Connector	Optical	5 V	28 V		7.5B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ROTARY ENCODER OPTICAL 2048PPR
