902-0088-001
ActiveROBOTIS

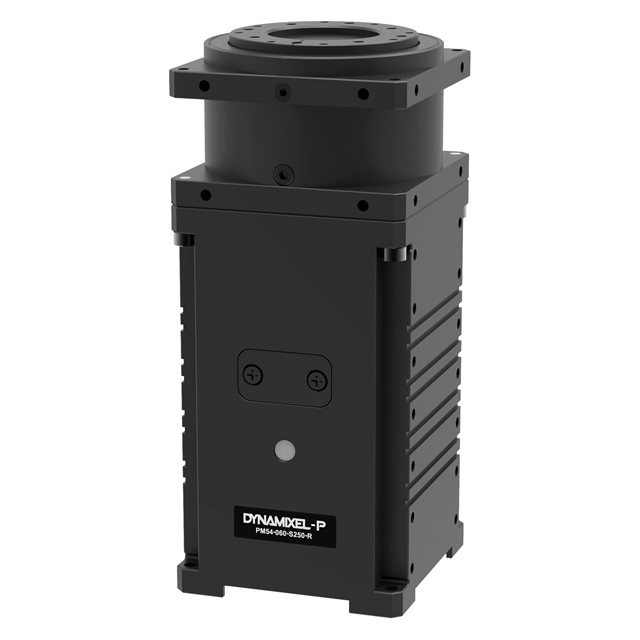

PM54-060-S250-R DYNAMIXEL SERVO
Deep-Dive with AI
Search across all available documentation for this part.
902-0088-001
ActiveROBOTIS
PM54-060-S250-R DYNAMIXEL SERVO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 902-0088-001 |
|---|---|
| Encoder Type | Absolute |
| Features | Integrated Controller |
| Function | Servomotor |
| Gear Reduction Ratio | 251.42 |
| Motor Type | Brushed |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -5 °C |
| Power - Rated | 60 W |
| Size / Dimension [x] | 126 mm |
| Size / Dimension [x] | 4.96 " |
| Size / Dimension [y] | 54 mm |
| Size / Dimension [y] | 2.125 in |
| Termination Style | Connector |
| Torque - Rated (oz-in / mNm) | 1098 mNm |
| Torque - Rated (oz-in / mNm) | 1430 oz-in |
| Type | DC Motor |
| Voltage - Rated | 24 VDC |
| Weight | 1.885 lb |
| Weight | 855 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
902-0088 Series
Brushed DC Motor Servomotor 33.1 RPM 60W Absolute 24VDC
Documents
Technical documentation and resources
No documents available
