CMDA6AR7D1S
Visual Communications Company - VCC

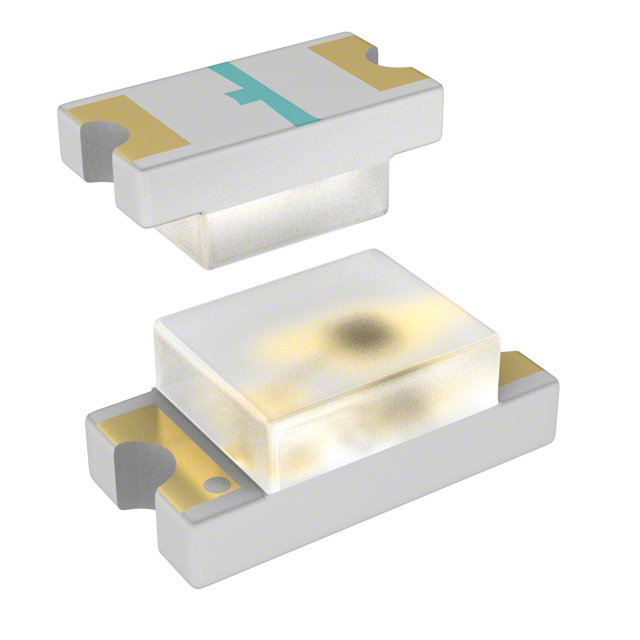

LED RED DIFFUSED 0603 SMD
Deep-Dive with AI
Search across all available documentation for this part.
CMDA6AR7D1S
Visual Communications Company - VCC
LED RED DIFFUSED 0603 SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CMDA6AR7D1S |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.8 mm |
| Lens Size [x] | 1 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 90 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Viewing Angle | 170 ° |
| Voltage - Forward (Vf) (Typ) | 1.9 V |
| Wavelength - Peak | 637 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.03 | |
| 10 | $ 0.67 | |||
| 100 | $ 0.44 | |||
| 1000 | $ 0.35 | |||
| 2000 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 1.03 | ||
| 10 | $ 0.67 | |||
| 100 | $ 0.44 | |||
| 1000 | $ 0.35 | |||
| 2000 | $ 0.33 | |||
| Tape & Reel (TR) | 4000 | $ 0.29 | ||
Description
General part information
CMDA6AR7 Series
Red LED Indication - Discrete 1.9V 0603 (1608 Metric)
Documents
Technical documentation and resources
No documents available
