09128053104
ActiveHARTING Technology Group

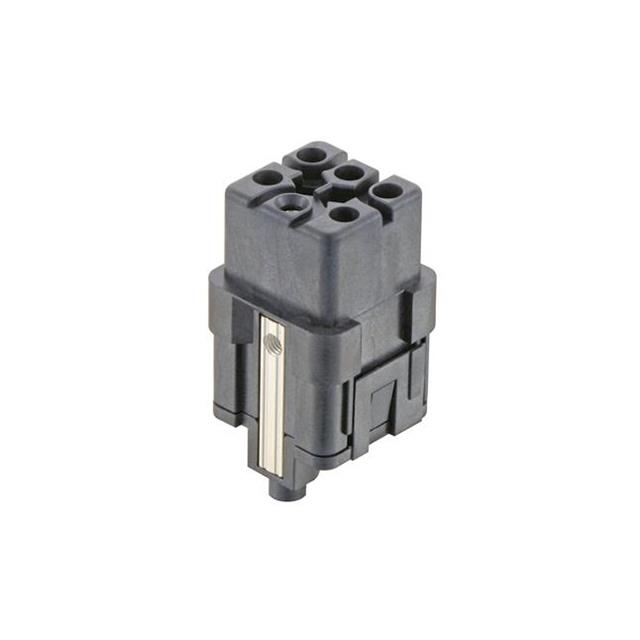

HEAVY DUTY CONNECTOR, HAN Q SERIES, INSERT, 5 CONTACTS, 3A, RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
09128053104
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, HAN Q SERIES, INSERT, 5 CONTACTS, 3A, RECEPTACLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 09128053104 |
|---|---|
| Color | Black |
| Connector Type | Insert without Contacts |
| Contact Type | Han® E |
| Current Rating (Amps) | 16 A |
| Gender | Female |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 5+Ground |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 3 A |
| Termination Style | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 51.26 | |
| 10 | $ 43.57 | |||
| 30 | $ 40.32 | |||
| 50 | $ 38.90 | |||
| 100 | $ 37.04 | |||
| 250 | $ 35.05 | |||
Description
General part information
09128053 Series
Female Insert without Contacts Black 5+Ground Position Crimp
Documents
Technical documentation and resources
