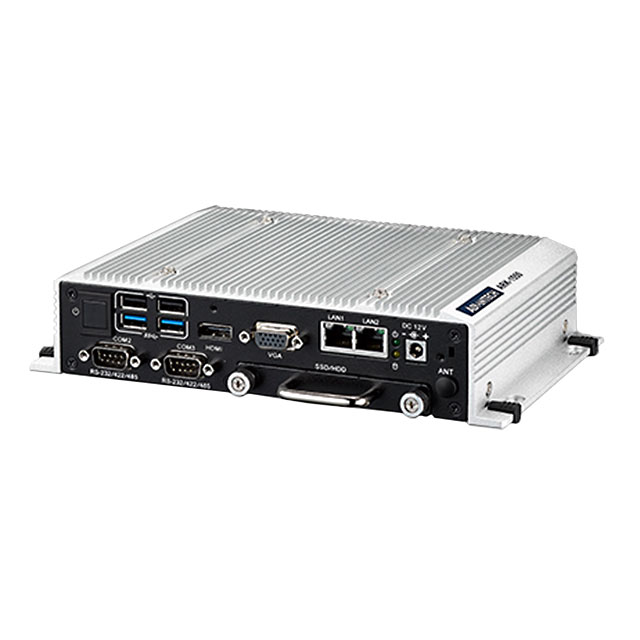

ARK-1550-S6A1E

Obsolete

Advantech Corp

SBC 1.6GHZ 2 CORE 8GB/0GB RAM

Search across all available documentation for this part.

Obsolete

Advantech Corp

SBC 1.6GHZ 2 CORE 8GB/0GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	ARK-1550-S6A1E

Cooling Type	Heat Sink
Core Processor	Intel Celeron 2980U
Digital I/O Lines	8
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps
Expansion Site/Bus	mPCIe
Number of Cores	2
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
RAM Capacity/Installed [custom]	8 GB
RAM Capacity/Installed [custom]	0 GB
RS-232 (422, 485)	3
Size / Dimension [x]	8.69 in
Size / Dimension [x]	220.72 mm
Size / Dimension [y]	5.18 in
Size / Dimension [y]	131.57 mm
Speed	1.6 GHz
Storage Interface	mSATA, SATA HDD
USB	2, 2
Video Outputs	HDMI, VGA, LVDS
Watchdog Timer	True

Part	RAM Capacity/Installed [custom]	RAM Capacity/Installed [custom]	RS-232 (422, 485)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Video Outputs	Cooling Type	Expansion Site/Bus	Watchdog Timer	Operating Temperature [Max]	Operating Temperature [Min]	USB	Digital I/O Lines	Speed	Storage Interface	Ethernet	Core Processor	Number of Cores
Advantech Corp ARK-1550-S6A1E	8 GB	0 GB	3	8.69 in	5.18 in	220.72 mm	131.57 mm	HDMI LVDS VGA	Heat Sink	mPCIe		55 °C	-20 C	2 2	8	1.6 GHz	mSATA SATA HDD	10 Mbps 100 Mbps 1000 Mbps	Intel Celeron 2980U	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Single Board Computer 1.6GHz 2 Core 8GB/0GB RAM Intel Celeron 2980U
