Q-0905D00082.5M

Active

Amphenol Custom Cable

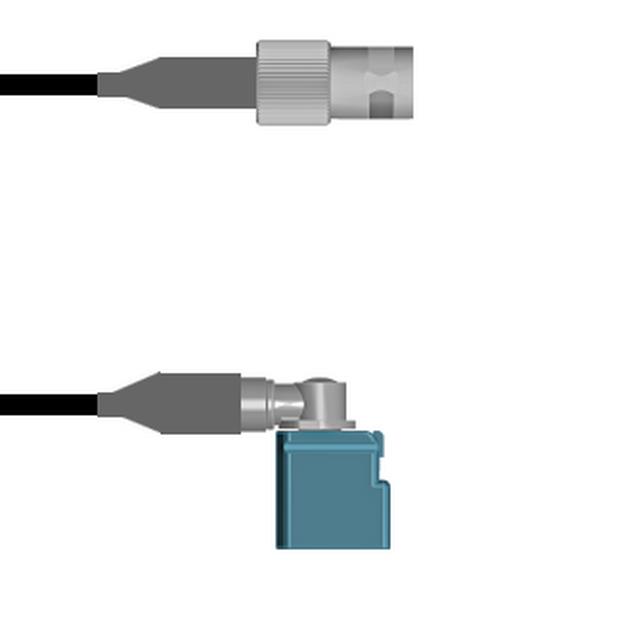

CBL ASSY BNC-FAKRA JCK-JCK 8.2'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0905D00082.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-FAKRA JCK-JCK 8.2'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0905D00082.5M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	Fakra Jack, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms
Style	BNC to Fakra

Q-0905D0 Series

Part	2nd Contact Gender	Cable Type	Overall Impedance	1st Contact Gender	1st Connector Mounting Type	2nd Connector	Features	2nd Connector Mounting Type	Color	Style	Frequency - Max [Max]	1st Connector	Length	Length	Length
Amphenol Custom Cable Q-0905D0008002M	Female	RG-58	50 Ohms	Female	Free Hanging (In-Line)	Fakra Jack Right Angle	Shielded	Free Hanging (In-Line)	Black	BNC to Fakra	3 GHz	BNC Jack	6.6 ft	78.7 in	2 m
Amphenol Custom Cable Q-0905D0008012i	Female	RG-58	50 Ohms	Female	Free Hanging (In-Line)	Fakra Jack Right Angle	Shielded	Free Hanging (In-Line)	Black	BNC to Fakra	3 GHz	BNC Jack		12 "	304.8 mm
Amphenol Custom Cable Q-0905D0008003M	Female	RG-58	50 Ohms	Female	Free Hanging (In-Line)	Fakra Jack Right Angle	Shielded	Free Hanging (In-Line)	Black	BNC to Fakra	3 GHz	BNC Jack	9.8 '	118.1 in	3 m
Amphenol Custom Cable Q-0905D0008072i	Female	RG-58	50 Ohms	Female	Free Hanging (In-Line)	Fakra Jack Right Angle	Shielded	Free Hanging (In-Line)	Black	BNC to Fakra	3 GHz	BNC Jack	6 ft	72 in	1.8 m
Amphenol Custom Cable Q-0905D0008084i	Female	RG-58	50 Ohms	Female	Free Hanging (In-Line)	Fakra Jack Right Angle	Shielded	Free Hanging (In-Line)	Black	BNC to Fakra	3 GHz	BNC Jack	7 ft	84 in	2.1 m
Amphenol Custom Cable Q-0905D0008060i	Female	RG-58	50 Ohms	Female	Free Hanging (In-Line)	Fakra Jack Right Angle	Shielded	Free Hanging (In-Line)	Black	BNC to Fakra	3 GHz	BNC Jack	5 ft	5 '	1.5 m
Amphenol Custom Cable Q-0905D00082.5M	Female	RG-58	50 Ohms	Female	Free Hanging (In-Line)	Fakra Jack Right Angle	Shielded	Free Hanging (In-Line)	Black	BNC to Fakra	3 GHz	BNC Jack	8.2 '	98.4 in	2.5 m
Amphenol Custom Cable Q-0905D0008.75M	Female	RG-58	50 Ohms	Female	Free Hanging (In-Line)	Fakra Jack Right Angle	Shielded	Free Hanging (In-Line)	Black	BNC to Fakra	3 GHz	BNC Jack		29.53 "	750 mm
Amphenol Custom Cable Q-0905D0008048i	Female	RG-58	50 Ohms	Female	Free Hanging (In-Line)	Fakra Jack Right Angle	Shielded	Free Hanging (In-Line)	Black	BNC to Fakra	3 GHz	BNC Jack	4 ft	48 in	1200 mm
Amphenol Custom Cable Q-0905D00081.5M	Female	RG-58	50 Ohms	Female	Free Hanging (In-Line)	Fakra Jack Right Angle	Shielded	Free Hanging (In-Line)	Black	BNC to Fakra	3 GHz	BNC Jack	4.9 ft	59.1 in	1.5 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 75.53
		25	$ 70.32
		50	$ 65.11
		100	$ 60.64
		250	$ 56.92

Description

General part information

Q-0905D0 Series

Cable Assembly Coaxial BNC to Fakra RG-58 98.4" (2.5m) 8.2'

Documents

Technical documentation and resources

No documents available
