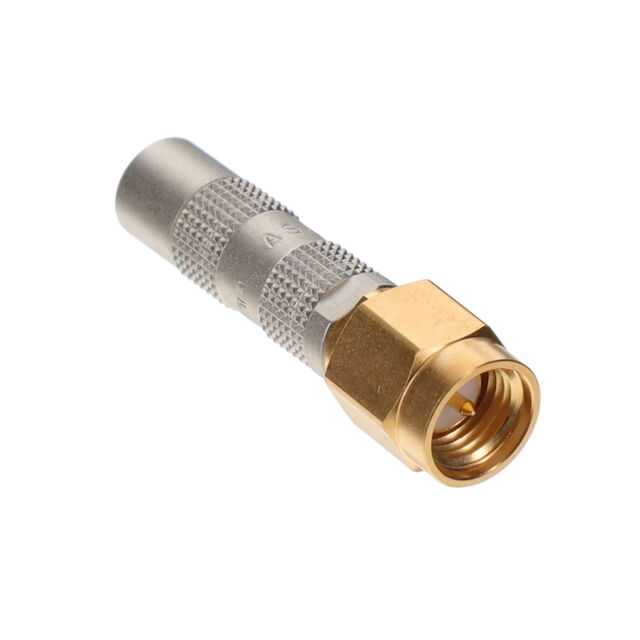

ASA.00.250.NTL

Active

LEMO

CONN ADAPT NIM-CAM JACK-SMA PLG

Search across all available documentation for this part.

Active

LEMO

CONN ADAPT NIM-CAM JACK-SMA PLG

Technical Specifications

Parameters and characteristics for this part

Specification	ASA.00.250.NTL

Adapter Series	SMA to Nim-Camac CD/N 549
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass, Bronze
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	NIM-CAMAC CD/N 549 Jack, Female Socket
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Push-Pull
Impedance	50 Ohms
Ingress Protection	IP50
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Fastening Type	Ingress Protection	Body Finish	Center Contact Plating	Conversion Type	Convert To (Adapter End)	Mounting Type	Adapter Series	Style	Impedance	Convert From (Adapter End)	Center Contact Material	Body Material	Mating Cycles	Dielectric Material	Adapter Type
LEMO ASA.00.250.NTL	Push-Pull Threaded	IP50	Nickel	Gold	Between Series	Male Pin SMA Plug	Free Hanging (In-Line)	SMA to Nim-Camac CD/N 549	Straight	50 Ohms	NIM-CAMAC CD/N 549 Jack Female Socket	Brass Bronze	Brass	500	Polytetrafluoroethylene (PTFE)	Plug to Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector NIM-CAMAC CD/N 549 Jack, Female Socket To SMA Plug, Male Pin 50 Ohms
