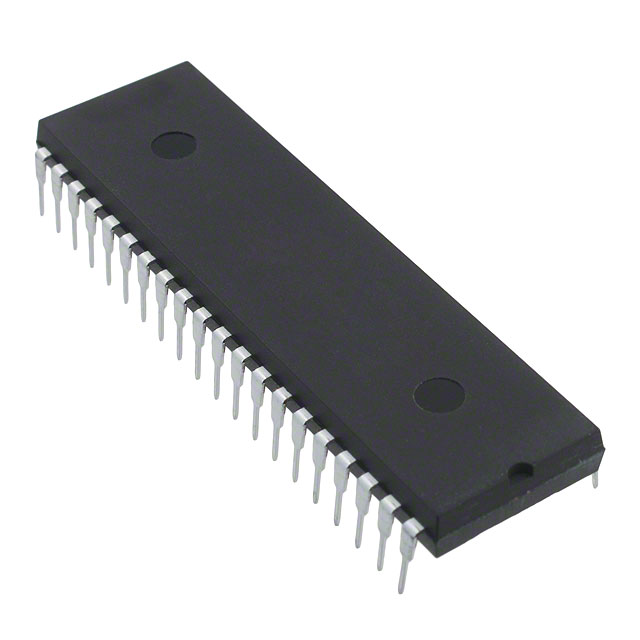

SCC68692C1N40,602

Obsolete

Freescale Semiconductor - NXP

IC DUART 1MBPS 40DIP

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC DUART 1MBPS 40DIP

Technical Specifications

Parameters and characteristics for this part

Specification	SCC68692C1N40,602

Data Rate (Max)	1 Mbps
Features	Configurable GPIO, Internal Oscillator, Timer/Counter
Mounting Type	Through Hole
Number of Channels	2
Package / Case	15.24 mm
Package / Case	0.6 in
Package / Case	40-DIP
Supplier Device Package	40-DIP
With Auto Flow Control	True
With False Start Bit Detection	True

Part	Features	Supplier Device Package	Package / Case	Data Rate (Max)	Number of Channels	Mounting Type	Package / Case	Package / Case
Freescale Semiconductor - NXP SCC68681C1A44,512	Configurable GPIO Internal Oscillator Timer/Counter	44-PLCC (16.59x16.59)	44-LCC (J-Lead)	1 Mbps	2	Surface Mount
Freescale Semiconductor - NXP SCC68692C1N40,602	Configurable GPIO Internal Oscillator Timer/Counter	40-DIP	40-DIP	1 Mbps	2	Through Hole	15.24 mm	0.6 in
Freescale Semiconductor - NXP SCC68681C1A44,518	Configurable GPIO Internal Oscillator Timer/Counter	44-PLCC (16.59x16.59)	44-LCC (J-Lead)	1 Mbps	2	Surface Mount
Freescale Semiconductor - NXP SCC68692C1A44,512	Configurable GPIO Internal Oscillator Timer/Counter	44-PLCC (16.59x16.59)	44-LCC (J-Lead)	1 Mbps	2	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

UART IC 2, DUART Channel 40-DIP
