175101-R2-05.00

Active

Amphenol RF

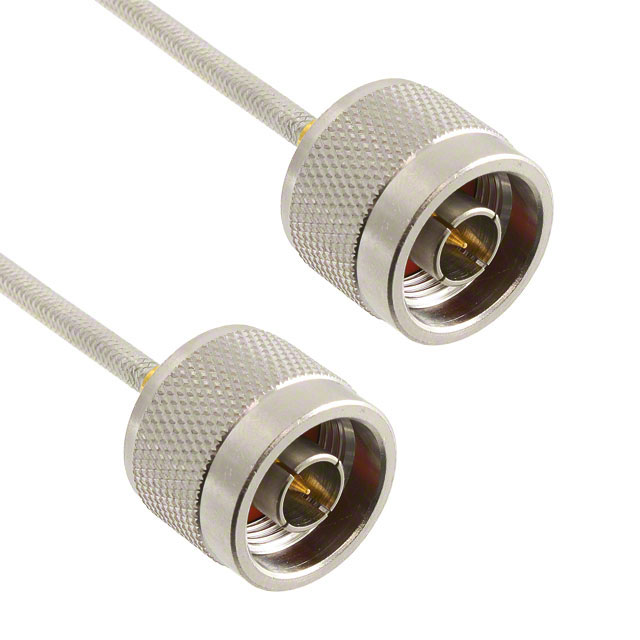

RF / COAXIAL CABLE ASSEMBLY, N-TYPE PLUG TO N-TYPE PLUG, 0.141 CONFORMABLE, 50 OHM, 5 ", 127 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturer Catalogue EN

175101-R2-05.00

Active

Amphenol RF

RF / COAXIAL CABLE ASSEMBLY, N-TYPE PLUG TO N-TYPE PLUG, 0.141 CONFORMABLE, 50 OHM, 5 ", 127 MM

Deep-Dive with AI

DocumentsManufacturer Catalogue EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	175101-R2-05.00

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	Hand Formable .141
Color	Gray
Length	5 in
Length	127 mm
Overall Impedance	50 Ohms
Style	N-Type to N-Type

175101 Series

Part	Overall Impedance	1st Contact Gender	2nd Contact Gender	2nd Connector	Style	Color	Cable Type	1st Connector Mounting Type	Length	Length	2nd Connector Mounting Type	Features	Cable Impedance	Length	Frequency - Max [Max]	Length [x]	Length [x]
Amphenol RF 175101-R2-05.00	50 Ohms	Male	Male	N-Type Plug	N-Type to N-Type	Gray	Hand Formable .141	Free Hanging (In-Line)	5 in	127 mm	Free Hanging (In-Line)
Amphenol RF 175101-17-36.00	50 Ohms	Male	Male	N-Type Plug	N-Type to N-Type	Black	LMR 200	Free Hanging (In-Line)	36 in	91.44 cm	Free Hanging (In-Line)	Shielded	50 Ohms
Amphenol RF 175101-22-M1.00	50 Ohms	Male	Male	N-Type Plug	N-Type to N-Type	Black	LMR 240	Free Hanging (In-Line)	39.4 in	1 m	Free Hanging (In-Line)	Shielded	50 Ohms	3.3 ft
Amphenol RF 175101-07-24.00	50 Ohms	Male	Male	N-Type Plug	N-Type to N-Type	Copper	RG-142	Free Hanging (In-Line)	24 "	609.6 mm	Free Hanging (In-Line)	Shielded	50 Ohms
Amphenol RF 175101-19-48.00	50 Ohms	Male	Male	N-Type Plug	N-Type to N-Type	Black	RG-58	Free Hanging (In-Line)	48 in	1200 mm	Free Hanging (In-Line)	Shielded	50 Ohms	4 ft
Amphenol RF 175101-10-M10	50 Ohms	Male	Male	N-Type Plug	N-Type to N-Type	Black	LMR 400	Free Hanging (In-Line)			Free Hanging (In-Line)	Shielded	50 Ohms		5.8 GHz
Amphenol RF 175101-R2-03.00	50 Ohms	Male	Male	N-Type Plug	N-Type to N-Type	Gray	Hand Formable .141	Free Hanging (In-Line)	3 in	76.2 mm	Free Hanging (In-Line)
Amphenol RF 175101-R1-07.00	50 Ohms	Male	Male	N-Type Plug	N-Type to N-Type	Gray	Hand Formable .085	Free Hanging (In-Line)	7 in	177.8 mm	Free Hanging (In-Line)
Amphenol RF 175101-22-M0.25	50 Ohms	Male	Male	N-Type Plug	N-Type to N-Type	Black	LMR 240	Free Hanging (In-Line)			Free Hanging (In-Line)	Shielded	50 Ohms			9.843 "	250 mm
Amphenol RF 175101-19-M0.75	50 Ohms	Male	Male	N-Type Plug	N-Type to N-Type	Black	RG-58	Free Hanging (In-Line)	29.53 "	750 mm	Free Hanging (In-Line)	Shielded	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 45.75
Newark	Each	1	$ 43.11

Description

General part information

175101 Series

Cable Assembly Coaxial N-Type to N-Type Hand Formable .141 5.000" (127.00mm)

Documents

Technical documentation and resources

Manufacturer Catalogue EN

Datasheet
