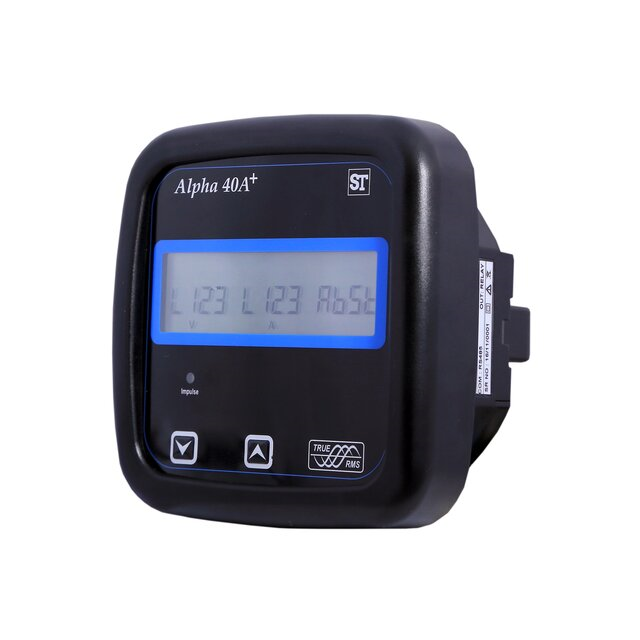

AP40-4395URP0000AN

Active

Sifam Tinsley Instrumentation Inc

MULTI METER 1-5A/440V LCD PNL MT

Search across all available documentation for this part.

Active

Sifam Tinsley Instrumentation Inc

MULTI METER 1-5A/440V LCD PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	AP40-4395URP0000AN

Display Type	LCD - Black Characters, Backlight
Ingress Protection	IP50
Measuring Range	440 V
Measuring Range [Max]	5 A
Measuring Range [Min]	1 A
Measuring Type	Current (3-Phase), Wattage, Voltage
Number of Characters Per Row	12
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	92.8 mm
Panel Cutout Dimensions [y]	92.8 mm
Termination Style	Screw Terminal
Type	Energy Monitor
Voltage - Supply [Max]	300 VAC/DC
Voltage - Supply [Min]	60 VAC/DC

Part	Termination Style	Number of Characters Per Row	Operating Temperature [Min]	Operating Temperature [Max]	Type	Display Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Measuring Range [Max]	Measuring Range	Measuring Range [Min]	Measuring Type
Sifam Tinsley Instrumentation Inc AP40-4395URP0000AN	Screw Terminal	12	-20 C	70 °C	Energy Monitor	LCD - Black Characters Backlight	60 VAC/DC	300 VAC/DC	92.8 mm	92.8 mm	IP50	5 A	440 V	1 A	Current (3-Phase) Voltage Wattage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	1	$ 250.00

General part information

Energy Monitor LCD - Black Characters, Backlight Display Panel Mount
