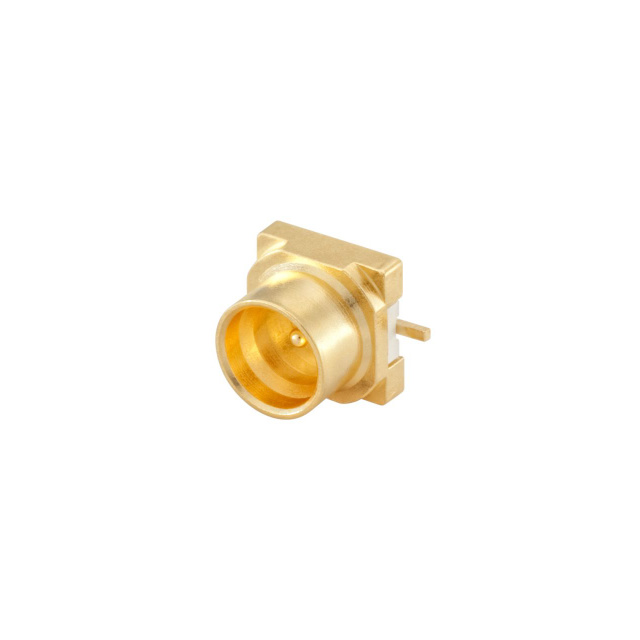

17S101-40ML5
ActiveRosenberger
CONN SMP PLUG STR 50OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
17S101-40ML5
ActiveRosenberger
CONN SMP PLUG STR 50OHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 17S101-40ML5 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | Longwipe, SMP |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 7.03 | |
| 10 | $ 6.36 | |||
| 25 | $ 6.00 | |||
| 50 | $ 5.86 | |||
| 100 | $ 5.57 | |||
| 300 | $ 4.98 | |||
| 500 | $ 4.69 | |||
| 1000 | $ 4.10 | |||
| 2500 | $ 3.90 | |||
Description
General part information
17S101 Series
SMP, Longwipe Connector Plug, Male Pin 50 Ohms Surface Mount Solder
