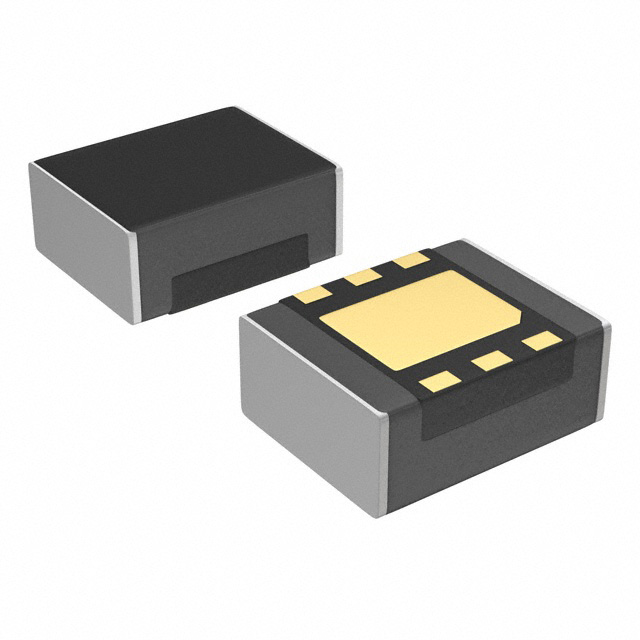

XCL220B083FR-G

Obsolete

Torex Semiconductor Ltd

1.0A INDUCTOR BUILT-IN STEP-DOWN

Search across all available documentation for this part.

Obsolete

Torex Semiconductor Ltd

1.0A INDUCTOR BUILT-IN STEP-DOWN

Technical Specifications

Parameters and characteristics for this part

Specification	XCL220B083FR-G

null

Part	Control Features	Package / Case	Mounting Type	Applications	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Voltage - Output 1	Voltage - Input (Min) [Min]	Supplier Device Package	Features	Operating Temperature [Min]	Operating Temperature [Max]	Type
Torex Semiconductor Ltd XCL220B363FR-G
Torex Semiconductor Ltd XCL220B283FR-G	Active High Enable	8-TDFN Exposed Pad	Surface Mount	ITE (Commercial)	5.5 V	1 A	1	0.08 "	0.1 in	2 mm	0.04 in	1 mm	2.5 mm	93 %	2.8 V	2.5 V	CL-2025-02	OCP OTP SCP UVLO	-40 °C	105 ░C	Non-Isolated PoL Module
Torex Semiconductor Ltd XCL220B293FR-G
Torex Semiconductor Ltd XCL220B083FR-G

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

DC DC Converter Output - Input

Technical documentation and resources

No documents available
