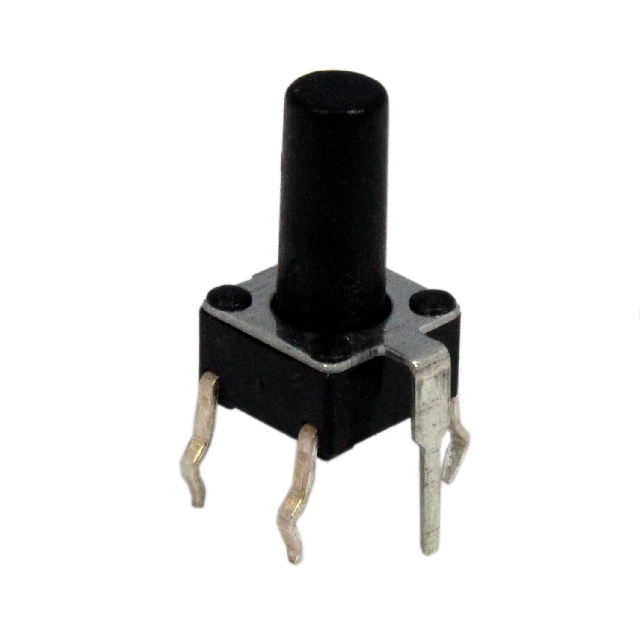

CT1102P11.0F260

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	CT1102P11.0F260

Actuator Height off PCB, Vertical	11 mm
Actuator Material	Polyamide (PA66), Nylon 6/6
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Force	260 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

Part	Mounting Type	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Outline [y]	Outline [x]	Illumination	Switch Function	Actuator Type	Switch Travel	Actuator Material	Circuit	Termination Style	Actuator Height off PCB, Vertical	Actuator Orientation	Operating Force
CIT Relay and Switch CT1102P11.0F260	Through Hole	0.05 A 50 VDC	85 °C	-40 °C	6 mm	6 mm	Non-Illuminated	Off-Mom	Plunger for Cap	0.25 mm	Nylon 6/6 Polyamide (PA66)	SPST-NO	PC Pin	11 mm	Top Actuated	260 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
