306-016-500-112

Active

EDAC Inc.

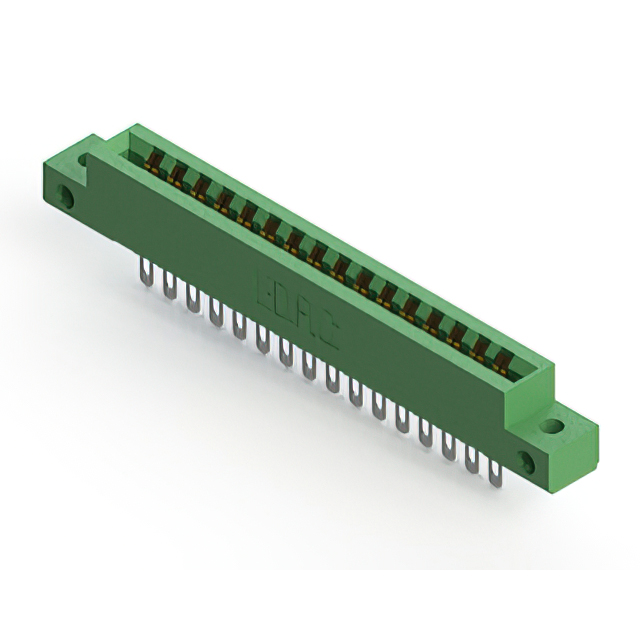

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 16 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

306-016-500-112

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 16 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	306-016-500-112

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Number of Positions/Bay/Row [custom]	16
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1

306-016 Series

Part	Gender	Contact Finish	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Mounting Type	Termination Rows	Color	Card Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination	Contact Type	Material - Insulation	Number of Rows	Read Out	Features
EDAC Inc. 306-016-520-112	Female	Gold	16	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Panel Mount Through Hole	1	Green	Non Specified - Dual Edge	0.156 in	3.96 mm	10 Áin	0.25 Ám	-40 °C	105 ░C	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Cantilever	Polyester Thermoplastic	2	Dual
EDAC Inc. 306-016-421-178	Female	Tin	16		4-40 Flush Mount Threaded Insert Top Opening		Panel Mount Through Hole	1	Green	Non Specified - Dual Edge	0.156 in	3.96 mm			-40 °C	105 ░C	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Cantilever	Polyester Thermoplastic	2	Dual	Card Guides
EDAC Inc. 306-016-500-112	Female	Gold	16	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "		1	Green	Non Specified - Dual Edge	0.156 in	3.96 mm	10 Áin	0.25 Ám	-40 °C	105 ░C	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Cantilever	Polyester Thermoplastic	2	Dual
EDAC Inc. 306-016-520-104	Female	Gold	16	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Panel Mount Through Hole	1	Green	Non Specified - Dual Edge	0.156 in	3.96 mm	10 Áin	0.25 Ám	-40 °C	105 ░C	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Cantilever	Polyester Thermoplastic	2	Dual
EDAC Inc. 306-016-421-103	Female	Tin	16	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Panel Mount Through Hole	1	Green	Non Specified - Dual Edge	0.156 in	3.96 mm			-40 °C	105 ░C	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Cantilever	Polyester Thermoplastic	2	Dual
EDAC Inc. 306-016-400-108	Female	Tin	16		4-40 Flush Mount Threaded Insert Top Opening			1	Green	Non Specified - Dual Edge	0.156 in	3.96 mm			-40 °C	105 ░C	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Cantilever	Polyester Thermoplastic	2	Dual
EDAC Inc. 306-016-521-158	Female	Gold	16		4-40 Flush Mount Threaded Insert Top Opening		Panel Mount Through Hole	1	Green	Non Specified - Dual Edge	0.156 in	3.96 mm	10 Áin	0.25 Ám	-40 °C	105 ░C	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Cantilever	Polyester Thermoplastic	2	Dual	Card Guides
EDAC Inc. 306-016-520-101	Female	Gold	16				Through Hole	1	Green	Non Specified - Dual Edge	0.156 in	3.96 mm	10 Áin	0.25 Ám	-40 °C	105 ░C	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Cantilever	Polyester Thermoplastic	2	Dual
EDAC Inc. 306-016-420-178	Female	Tin	16		4-40 Flush Mount Threaded Insert Top Opening		Panel Mount Through Hole	1	Green	Non Specified - Dual Edge	0.156 in	3.96 mm			-40 °C	105 ░C	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Cantilever	Polyester Thermoplastic	2	Dual	Card Guides
EDAC Inc. 306-016-400-102	Female	Tin	16	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "		1	Green	Non Specified - Dual Edge	0.156 in	3.96 mm			-40 °C	105 ░C	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Cantilever	Polyester Thermoplastic	2	Dual

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 13.28
Newark	Each	1	$ 12.74
		100	$ 8.00
		250	$ 6.52
		500	$ 5.86
		1000	$ 5.00

Description

General part information

306-016 Series

32 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
