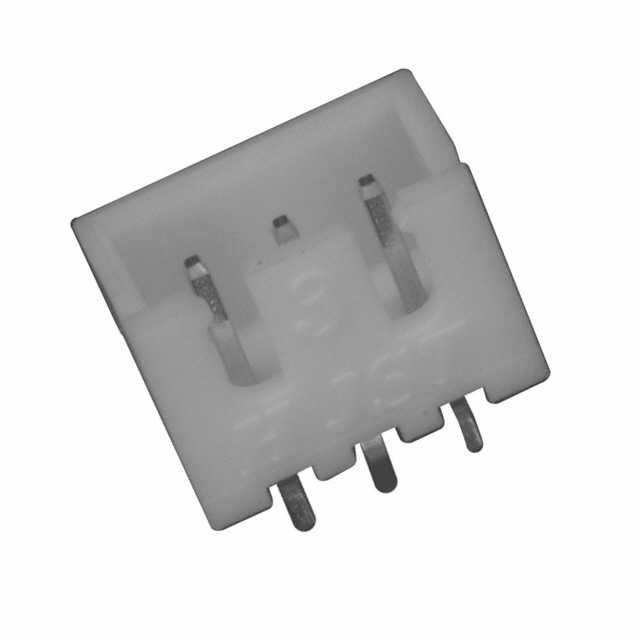

B3B-XH-AM

Active

JST Sales America Inc.

CONN HEADER VERT 3POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 3POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	B3B-XH-AM

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Features	Board Guide
Insulation Color	Natural
Insulation Height [z]	7 mm
Insulation Height [z]	0.276 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Mated Stacking Heights	9.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	250 VDC

Part	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Insulation Material	Number of Rows	Current Rating (Amps)	Contact Shape	Shrouding	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Insulation Color	Contact Material	Material Flammability Rating	Mated Stacking Heights	Termination	Connector Type	Pitch - Mating	Pitch - Mating	Style	Insulation Height [z]	Insulation Height [z]	Voltage Rating	Fastening Type	Features
JST Sales America Inc. B3B-XH-A	All	0.134 in	3.4 mm	Male Pin	Polyamide (PA66) Nylon 6/6	1	3 A	Square	Shrouded - 4 Wall	Through Hole	-25 °C	85 °C	Tin	Natural	Brass	UL94 V-0	9.8 mm	Press-Fit Solder	Header	2.5 mm	0.098 in	Board to Cable/Wire	7 mm	0.276 in	250 VDC	Detent Lock
JST Sales America Inc. B3B-XH-AM	All	0.134 in	3.4 mm	Male Pin	Polyamide (PA66) Nylon 6/6	1	3 A	Square	Shrouded - 4 Wall	Through Hole	-25 °C	85 °C	Tin	Natural	Brass	UL94 V-0	9.8 mm	Press-Fit Solder	Header	2.5 mm	0.098 in	Board to Cable/Wire	7 mm	0.276 in	250 VDC	Detent Lock	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 3 position 0.098" (2.50mm)

Technical documentation and resources
