30-Y-50-030
ActiveOK INDUSTRIES

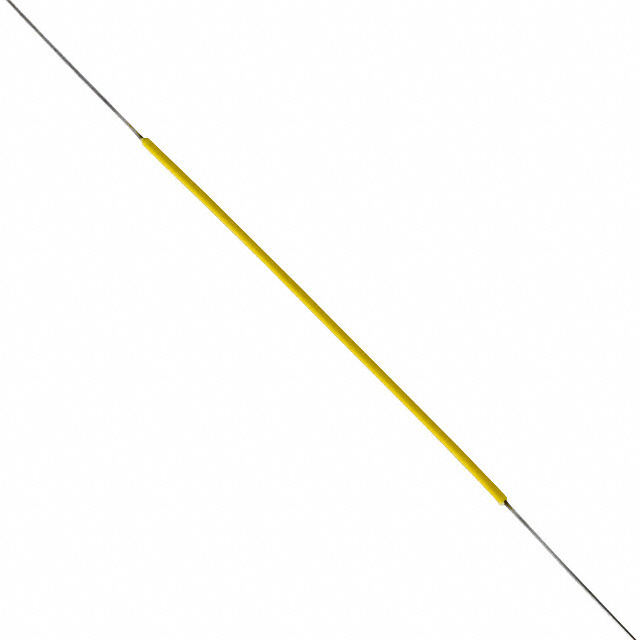

WIRE WW 30AWG PVDF YELLW 5" 50PC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 30-Y-50-030 |
|---|---|
| Conductor Diameter [diameter] | 0.25 mm |
| Conductor Diameter [diameter] | 0.01 in |
| Conductor Material | Copper, Bare |
| Conductor Plating | Silver |
| Jacket (Insulation) Diameter [diameter] | 0.019 in |
| Jacket (Insulation) Diameter [diameter] | 0.5 mm |
| Jacket (Insulation) Material | Polyvinylidene Fluoride (PVDF) |
| Jacket Color | Yellow |
| Length [x] | 5 " |
| Length [x] | 127 mm |
| Length [x] | 0.417 ' |
| Ratings | VW-1, UL Style 1423 |
| Wire Gauge | 30 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | 50 per Pkg | 1 | $ 18.30 | |
| 2 | $ 17.43 | |||
| 3 | $ 16.94 | |||
| 5 | $ 16.33 | |||
| 7 | $ 15.95 | |||
| 10 | $ 15.54 | |||
| 25 | $ 14.55 | |||
| 50 | $ 13.95 | |||
Description
General part information
30-Y-50 Series
Wire Wrap 30 AWG Yellow Polyvinylidene Fluoride (PVDF) 0.417' (127.00mm, 5.00")
