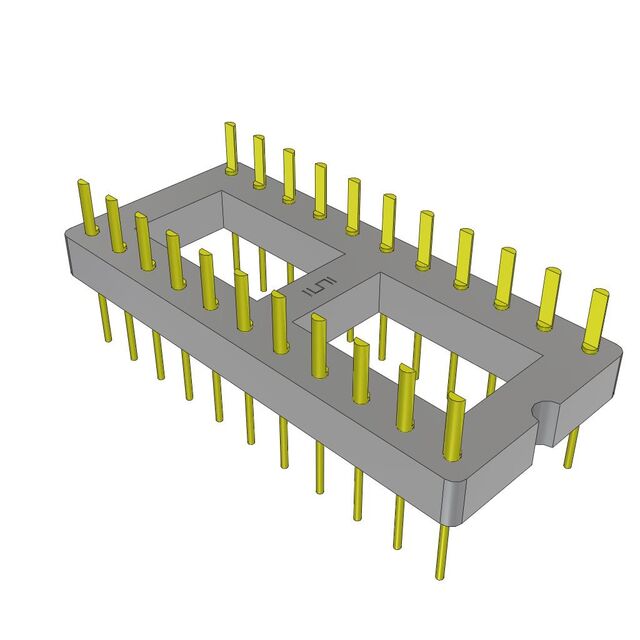

APA-422-G-C

Active

Samtec Inc.

ADAPTER PLUG

Search across all available documentation for this part.

Active

Samtec Inc.

ADAPTER PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	APA-422-G-C

Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	20 µin
Contact Finish Thickness - Post	0.51 µm
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Features	Open Frame
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	22
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder

Part	Housing Material	Features	Material Flammability Rating	Pitch - Post	Pitch - Post	Mounting Type	Contact Material - Post	Number of Positions or Pins (Grid)	Pitch - Mating	Pitch - Mating	Termination	Contact Material - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. APA-422-T-B	Polybutylene Terephthalate (PBT) Glass Filled	Open Frame	UL94 V-0	2.54 mm	0.1 in	Through Hole	Phosphor Bronze	22	0.1 in	2.54 mm	Solder	Phosphor Bronze	Tin
Samtec Inc. APA-422-G-C	Polybutylene Terephthalate (PBT) Glass Filled	Open Frame	UL94 V-0	2.54 mm	0.1 in	Through Hole	Phosphor Bronze	22	0.1 in	2.54 mm	Solder	Phosphor Bronze	Gold	0.51 µm	20 µin	Gold	20 µin	0.51 µm
Samtec Inc. APA-422-G-A1	Polybutylene Terephthalate (PBT) Glass Filled	Open Frame	UL94 V-0	2.54 mm	0.1 in	Through Hole	Phosphor Bronze	22	0.1 in	2.54 mm	Solder	Phosphor Bronze	Gold	0.51 µm	20 µin	Gold	20 µin	0.51 µm
Samtec Inc. APA-422-T-P	Polybutylene Terephthalate (PBT) Glass Filled	Open Frame	UL94 V-0	2.54 mm	0.1 in	Through Hole	Phosphor Bronze	22	0.1 in	2.54 mm	Solder	Phosphor Bronze	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.38

General part information

22 (2 x 11) Pos Socket Gold Through Hole
