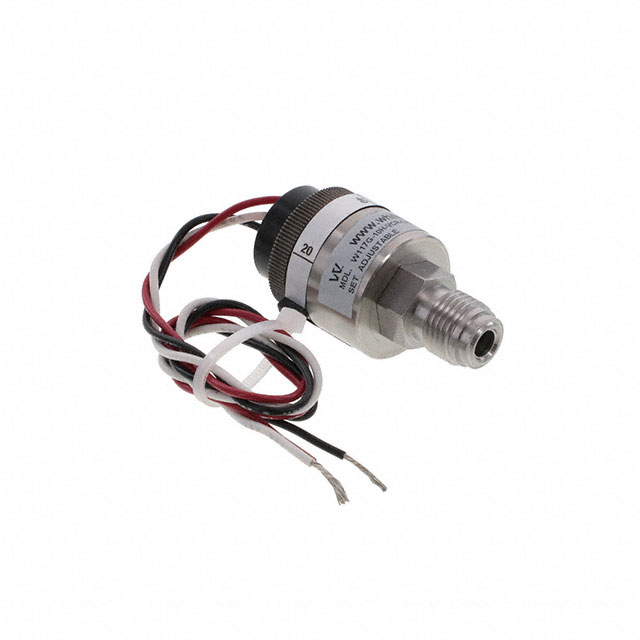

W117G-10H-VCR-C52L-DIS

Active

Whitman Controls, LLC

PRESSURE SWITCH 4-100 PSIG

Search across all available documentation for this part.

Active

Whitman Controls, LLC

PRESSURE SWITCH 4-100 PSIG

Technical Specifications

Parameters and characteristics for this part

Part	Port Size	Port Size	Port Size	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Port Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Termination Style	Pressure Type	Package / Case	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Max]	Operating Pressure [Min]	Accuracy	Accuracy	Accuracy
Whitman Controls, LLC W117G-10H-C52TS-DIS	0.125 "	3.18 mm	Male	-54 °C	107 °C	SPDT	Threaded	100 PSI	689.48 kPa	Screw Terminal	Switch	Cylinder Threaded	4.5 PSI	689.48 kPa	100 PSI	31.03 kPa	13.79 kPa	2 PSI
Whitman Controls, LLC W117G-3H-VCR-C12TS-DIS	0.25 "	6.35 mm	Male VCR®	-54 °C	107 °C	SPDT	Threaded	-30 PSI	-206.84 kPa	Screw Terminal	Switch	Cylinder Threaded	1.6 PSI	206.84 kPa	30 PSI	11.03 kPa	4.14 kPa	0.6 PSI
Whitman Controls, LLC W117G-3H-VCR-C52L-DIS	0.25 "	6.35 mm	Male VCR®	-54 °C	107 °C	SPDT	Threaded	-30 PSI	-206.84 kPa	Wire Leads	Switch	Cylinder Threaded	1.6 PSI	206.84 kPa	30 PSI	11.03 kPa	4.14 kPa	0.6 PSI
Whitman Controls, LLC W117G-10H-C52L-DIS	0.125 "	3.18 mm	Male	-54 °C	107 °C	SPDT	Threaded	100 PSI	689.48 kPa	Wire Leads	Switch	Cylinder Threaded	4.5 PSI	689.48 kPa	100 PSI	31.03 kPa	13.79 kPa	2 PSI
Whitman Controls, LLC W117G-10H-VCR-C52L-DIS	0.25 "	6.35 mm	Male VCR®	-54 °C	107 °C	SPDT	Threaded	100 PSI	689.48 kPa	Wire Leads	Switch	Cylinder Threaded	4.5 PSI	689.48 kPa	100 PSI	31.03 kPa	13.79 kPa	2 PSI
Whitman Controls, LLC W117G-50H-VCR-C52TB-DIS	0.25 "	6.35 mm	Male VCR®	-54 °C	107 °C	SPDT	Threaded	500 PSI	3447.38 kPa	Quick Connect - 0.250" (6.3mm)	Switch	Cylinder Threaded	20 PSI	3447.38 kPa	500 PSI	137.9 kPa	10 PSI		68.95 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 168.88

General part information

PRESSURE SWITCH 4-100 PSIG
