R26BLK-0100
ActiveOK INDUSTRIES
WIRE, WRAPPING WIRE, PVDF, BLACK, 26 AWG, 100 FT
Deep-Dive with AI
Search across all available documentation for this part.
R26BLK-0100
ActiveOK INDUSTRIES
WIRE, WRAPPING WIRE, PVDF, BLACK, 26 AWG, 100 FT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R26BLK-0100 |
|---|---|
| Conductor Diameter [diameter] | 0.4 mm |
| Conductor Diameter [diameter] | 0.016 in |
| Conductor Material | Copper, Bare |
| Conductor Plating | Silver |
| Jacket (Insulation) Diameter [diameter] | 0.69 mm |
| Jacket (Insulation) Diameter [diameter] | 0.027 in |
| Jacket (Insulation) Material | Polyvinylidene Fluoride (PVDF) |
| Jacket (Insulation) Thickness | 0.005 in |
| Jacket (Insulation) Thickness | 0.13 mm |
| Jacket Color | Black |
| Length | 30.5 m |
| Length [x] | 100 ft |
| Operating Temperature | 105 C |
| Ratings | UL Style 1422 |
| Wire Gauge | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
R26B Series

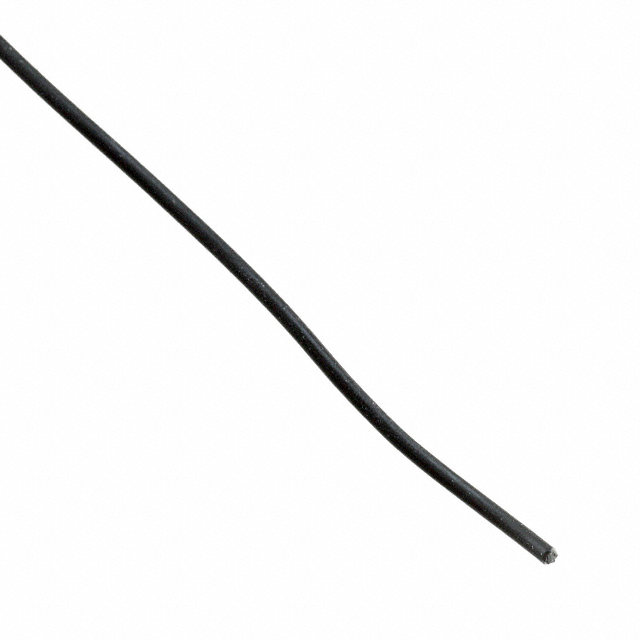

The R26BLK-0100 is a 100ft black Wire Wrapping Wire with silver-plated copper conductor and KYNAR® insulation. The OFHC (oxygen free high conductivity) provides a flexible yet abrasion resistant wire.
