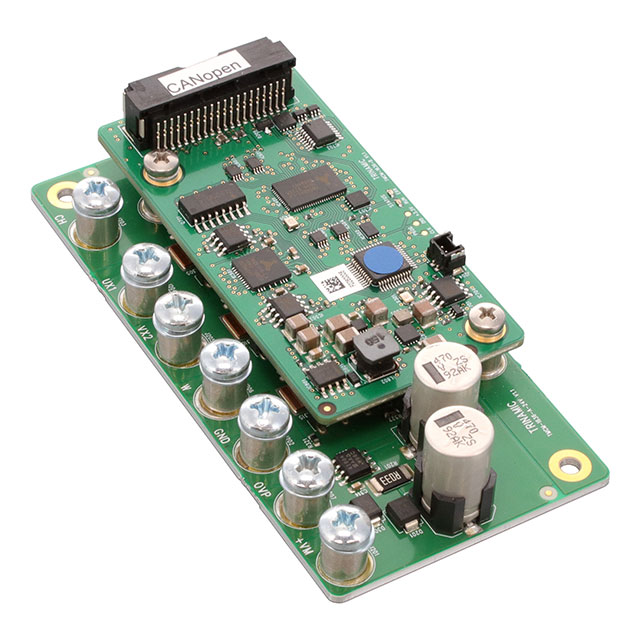

TMCM-1636-24V-CANOPEN

Active

Analog Devices Inc./Maxim Integrated

BLDC/DC SERVO DRIVE, 30A, 24V

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

BLDC/DC SERVO DRIVE, 30A, 24V

Technical Specifications

Parameters and characteristics for this part

Part	Wattage - Load	Operating Temperature [Min]	Operating Temperature [Max]	Motor Type	Voltage - Supply	Current - Output	Type	Voltage - Load [Max]	Voltage - Load [Min]	Mounting Type	Control / Drive Type
Analog Devices Inc./Maxim Integrated TMCM-1636-48V-CANOPEN	1 kW	-30 ░C	60 °C	Brushless (BLDC)	48 VDC	20 A	Board	60 V	12 V	Chassis Mount	Brushless
Analog Devices Inc./Maxim Integrated TMCM-1636-48V-TMCL	1 kW	-30 ░C	60 °C	Brushless (BLDC)	48 VDC	20 A	Board	60 V	12 V	Chassis Mount	Brushless
Analog Devices Inc./Maxim Integrated TMCM-1636-24V-CANOPEN	1 kW	-30 ░C	60 °C	Brushless (BLDC)	24 VDC	30 A	Board	28 V	12 V	Chassis Mount	Brushless

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 297.44

General part information

Brushless 24VDC Supply 30A 12V ~ 28V Load

Technical documentation and resources

No documents available
