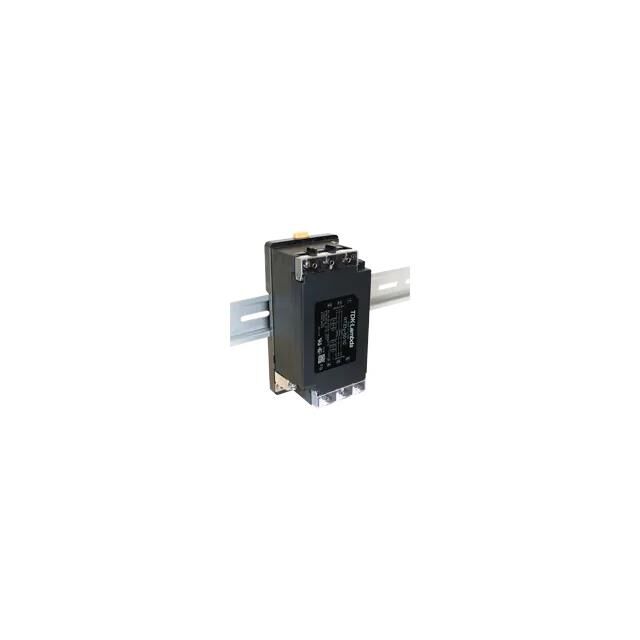

RTEN-5006D

Active

TDK-LAMBDA

POWER LINE FILTER, GENERAL PURPOSE, 500 V, 6 A, THREE PHASE, 1 STAGE, DIN RAIL MOUNT

Search across all available documentation for this part.

Active

TDK-LAMBDA

POWER LINE FILTER, GENERAL PURPOSE, 500 V, 6 A, THREE PHASE, 1 STAGE, DIN RAIL MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Rated AC	Voltage - Rated DC	Approval Agency	Applications	Current	Mounting Type	Termination Style	Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Filter Type
TDK-LAMBDA RTEN-5060	500 V	500 V	EN UL	General Purpose	60 A	Chassis Mount	Terminal Block	Single Stage	-25 °C	85 °C	Three Phase (Delta)
TDK-LAMBDA RTEN-5050	500 V	500 V	EN UL	General Purpose	50 A	Chassis Mount	Terminal Block	Single Stage	-25 °C	85 °C	Three Phase (Delta)
TDK-LAMBDA RTEN-5006D	500 V	500 V	EN UL	General Purpose	6 A	DIN Rail	Terminal Block	Single Stage	-25 °C	85 °C	Three Phase (Delta)
TDK-LAMBDA RTEN-5010D	500 V	500 V	EN UL	General Purpose	10 A	DIN Rail	Terminal Block	Single Stage	-25 °C	85 °C	Three Phase (Delta)
TDK-LAMBDA RTEN-5030D	500 V	500 V	EN UL	General Purpose	30 A	DIN Rail	Terminal Block	Single Stage	-25 °C	85 °C	Three Phase (Delta)
TDK-LAMBDA RTEN-5080	500 V	500 V	EN UL	General Purpose	80 A	Chassis Mount	Terminal Block	Single Stage	-25 °C	85 °C	Three Phase (Delta)
TDK-LAMBDA RTEN-5030	500 V	500 V	EN UL	General Purpose	30 A	Chassis Mount	Terminal Block	Single Stage	-25 °C	85 °C	Three Phase (Delta)
TDK-LAMBDA RTEN-5250	500 V	500 V	EN	General Purpose	250 A	Chassis Mount	Terminal Block	Single Stage	-25 °C	85 °C	Three Phase (Delta)
TDK-LAMBDA RTEN-5150	500 V	500 V	EN UL	General Purpose	150 A	Chassis Mount	Terminal Block	Single Stage	-25 °C	85 °C	Three Phase (Delta)
TDK-LAMBDA RTEN-5040	500 V	500 V	EN UL	General Purpose	40 A	Chassis Mount	Terminal Block	Single Stage	-25 °C	85 °C	Three Phase (Delta)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Three Phase (Delta) EMC/EMI Line Filter 6 A 500V 500V Single Stage Terminal Block
