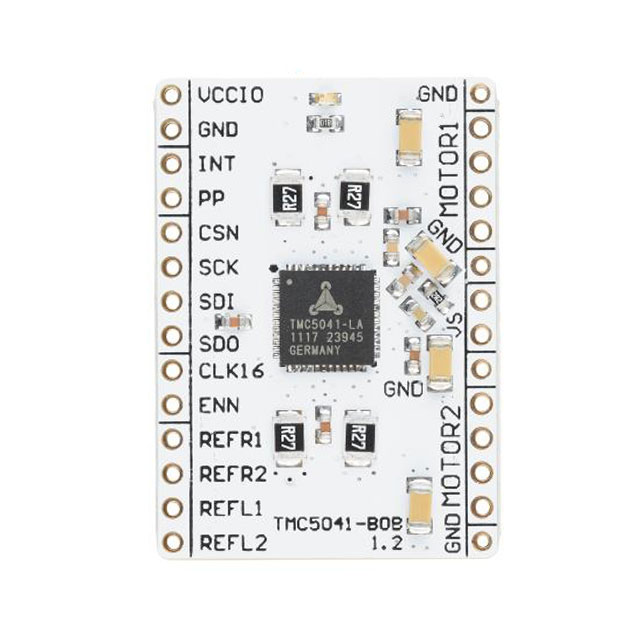

TMC5041-BOB

Active

Analog Devices Inc./Maxim Integrated

BREAKOUTBOARD WITH TMC5041

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

BREAKOUTBOARD WITH TMC5041

Technical Specifications

Parameters and characteristics for this part

Part	Utilized IC / Part	Supplied Contents	Type	Embedded	Contents	Secondary Attributes	Primary Attributes	Voltage - Load [Min]	Voltage - Load [Max]	Motor Type - Stepper	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Step Resolution [Max]	Step Resolution [Min]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Output Configuration	Function	Applications	Technology	Current - Output	Interface
Analog Devices Inc./Maxim Integrated TMC5041-EVAL-KIT	TMC5041	Board(s)	Power Management	32-Bit MCU
Analog Devices Inc./Maxim Integrated TMC5041-BOB	TMC5041	Board(s)	Power Management		Board(s)	SPI Interface(s)	Motors (Stepper)
Analog Devices Inc./Maxim Integrated TMC5041-LA								5.5 V	26 V	Bipolar	48-VFQFN Exposed Pad	-40 °C	125 ¯C	1	0.00390625	Surface Mount	26 V	5.5 V	48-QFN (7x7)	Half Bridge (2)	Driver - Fully Integrated Control and Power Stage	General Purpose	Power MOSFET	1.1 A	SPI
Analog Devices Inc./Maxim Integrated TMC5041-LA-T								5.5 V	26 V	Bipolar	48-VFQFN Exposed Pad	-40 °C	125 ¯C	1	0.00390625	Surface Mount	26 V	5.5 V	48-QFN (7x7)	Half Bridge (8)	Driver - Fully Integrated Control and Power Stage	General Purpose	Power MOSFET	1.1 A	SPI
Analog Devices Inc./Maxim Integrated TMC5041-EVAL	TMC5041	Board(s)	Power Management		Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.49

General part information

TMC5041 Motor Controller/Driver, Stepper Power Management Evaluation Board

Technical documentation and resources

No documents available
