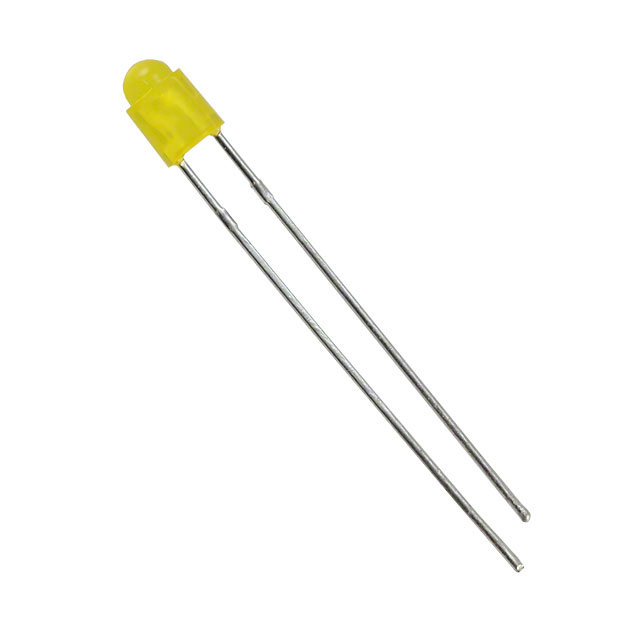

WP908A8YD

Active

Kingbright

LED YELLOW DIFFUSED T-1 T/H

Search across all available documentation for this part.

Active

Kingbright

LED YELLOW DIFFUSED T-1 T/H

Technical Specifications

Parameters and characteristics for this part

Part	Millicandela Rating	Lens Transparency	Mounting Type	Voltage - Forward (Vf) (Typ)	Color	Supplier Device Package	Wavelength - Peak	Lens Style	Height (Max) [Max]	Configuration	Current - Test	Lens Size	Lens Size	Size / Dimension [diameter]	Lens Color	Wavelength - Dominant	Package / Case	Viewing Angle
Kingbright WP908A8GD	25 mcd	Diffused	Through Hole	2.2 V	Green	T-1	565 nm	Round with Domed Top	5.5 mm	Standard	20 mA	3 mm	T-1	2.9 mm	Green	568 nm	Radial	80 °
Kingbright WP908A8ID	20 mcd	Diffused	Through Hole	2 V	Red	T-1	627 nm	Round with Domed Top	5.5 mm	Standard	20 mA	3 mm	T-1	2.9 mm	Red	625 nm	Radial	80 °
Kingbright WP908A8SRD	60 mcd	Diffused	Through Hole	1.85 V	Red	T-1	660 nm	Round with Domed Top	5.5 mm	Standard	20 mA	3 mm	T-1	2.9 mm	Red	640 nm	Radial	80 °
Kingbright WP908A8ND	10 mcd	Diffused	Through Hole	2.05 V		T-1	607 nm	Round with Domed Top	5.5 mm	Standard	20 mA	3 mm	T-1	2.9 mm	Orange	602 nm	Radial	80 °
Kingbright WP908A8YD	20 mcd	Diffused	Through Hole	2.1 V	Yellow	T-1	590 nm	Round with Domed Top	5.5 mm	Standard	20 mA	3 mm	T-1	2.9 mm	Yellow	588 nm	Radial	80 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Yellow 588nm LED Indication - Discrete 2.1V Radial
