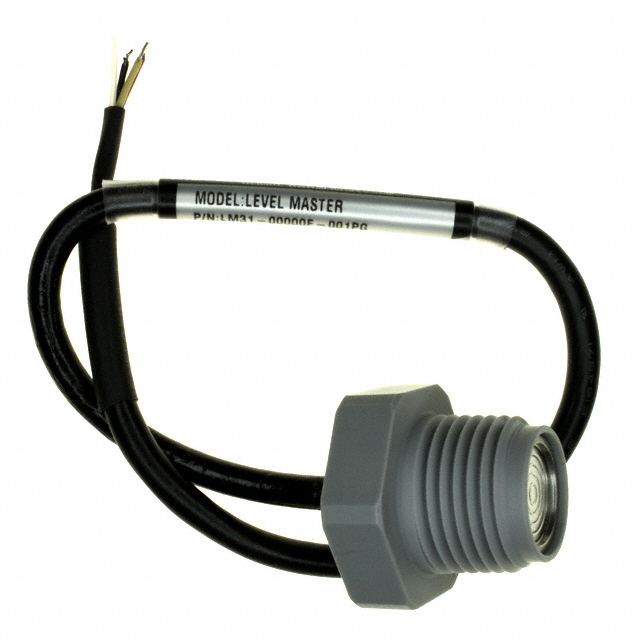

LM31-00000F-001PG
ActiveTE Connectivity Measurement Specialties
SENSOR 1PSIG 1/2NPT .5-4.5V 12"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LM31-00000F-001PG
ActiveTE Connectivity Measurement Specialties
SENSOR 1PSIG 1/2NPT .5-4.5V 12"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LM31-00000F-001PG |
|---|---|
| Accuracy | 1 % |
| Applications | Industrial Automation |
| Features | Temperature Compensated |
| Maximum Pressure | 20.68 kPa |
| Maximum Pressure | 3 PSI |
| Operating Pressure | 6.89 kPa |
| Operating Pressure | 1 PSI |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Output [Max] | 4.5 V |
| Output [Min] | 0.5 V |
| Output Type | Analog Voltage |
| Package / Case | Cylinder |
| Port Size | 12.7 mm |
| Port Size | NPT, Male, 1/2" |
| Port Style | Threaded |
| Pressure Type | Vented Gauge |
| Termination Style | Cable |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 217.36 | |
| 10 | $ 199.24 | |||
Description
General part information
LM31 Series
SENSOR 1PSIG 1/2NPT .5-4.5V 12"
Documents
Technical documentation and resources
