17240JA-12M-YA-00
ActiveNMB TECHNOLOGIES

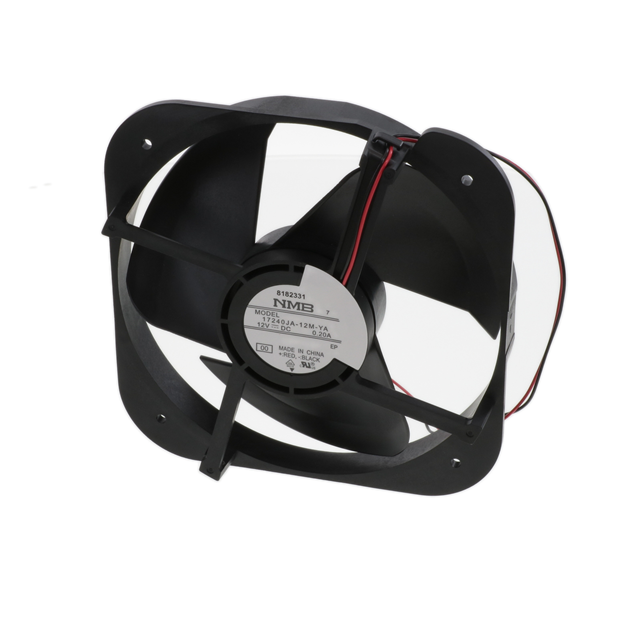

DC AXIAL FAN, 12 V, SQUARE, 172 MM, 40 MM, BALL BEARING, 128.2 CFM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
17240JA-12M-YA-00
ActiveNMB TECHNOLOGIES
DC AXIAL FAN, 12 V, SQUARE, 172 MM, 40 MM, BALL BEARING, 128.2 CFM
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | 17240JA-12M-YA-00 |
|---|---|
| Air Flow | 3.59 mł/min |
| Air Flow | 128.2 CFM |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Lifetime @ Temp. | 100000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 33.5 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 1.92 W |
| RPM | 1550 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 172 mm |
| Size / Dimension [z] | 172 mm |
| Static Pressure | 29.9 Pa |
| Static Pressure | 0.12 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Weight | 0.717 lb |
| Weight | 325.22 g |
| Width [y] | 40 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
17240JA Series
Fan Tubeaxial 12VDC Square - 172mm L x 172mm H Ball 128.2 CFM (3.59m³/min) 2 Wire Leads
