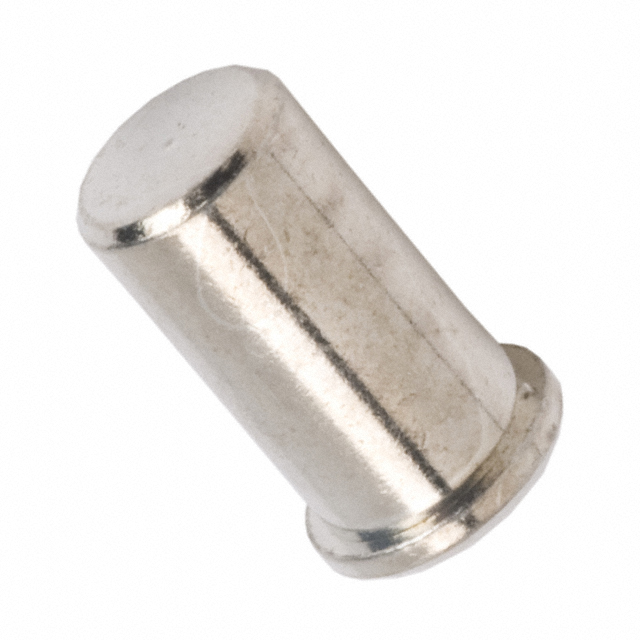

H3492-01 - H3492-01

H3492-01

Active
Harwin Inc.

2MM SOCKET ASSY ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

Documents3D Product Image EN2.00mm.O.C.B Sockets Spec Sheet+2
H3492-01 - H3492-01

H3492-01

Active
Harwin Inc.

2MM SOCKET ASSY ROHS COMPLIANT: YES

Deep-Dive with AI

Documents3D Product Image EN2.00mm.O.C.B Sockets Spec Sheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationH3492-01
Accepts Pin Diameter [Max] [diameter]2.3 mm
Accepts Pin Diameter [Max] [diameter]0.091 in
Accepts Pin Diameter [Min] [diameter]2 mm
Accepts Pin Diameter [Min] [diameter]0.079 in
Contact FinishGold
Contact MaterialBeryllium Copper
Flange Diameter [diameter]0.187 in
Flange Diameter [diameter]4.75 mm
Insertion Force [Max]6 N
Insertion Force [Min]3 N
Length - Overall [x]8 mm
Length - Overall [x]0.315 in
Mounting Hole Diameter [Max]0.162 in
Mounting Hole Diameter [Max]4.12 mm
Mounting Hole Diameter [Min]4.01 mm
Mounting Hole Diameter [Min]0.158 in
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Socket Depth0.161 in
Socket Depth4.09 mm
Tail TypeNo Tail
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.80
10$ 1.38
25$ 1.24
50$ 1.14
100$ 1.06
250$ 0.96
500$ 0.89
1000$ 0.83
2500$ 0.75
NewarkEach 1000$ 0.86

Description

General part information

H3492 Series

Pin Receptacle Connector 0.079" ~ 0.091" (2.00mm ~ 2.30mm) No Tail Solder
