Q1286ABD

Active

Hoffman Enclosures, Inc.

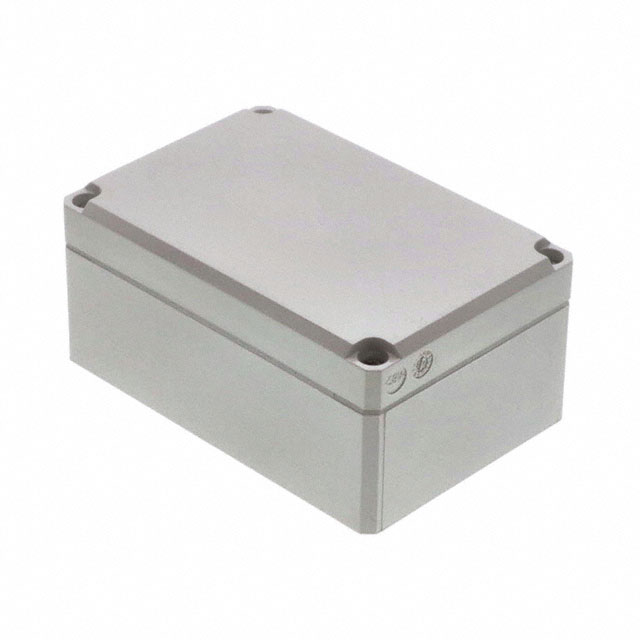

BOX ABS GRAY 4.72"L X 3.15"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

BOX ABS GRAY 4.72"L X 3.15"W

Technical Specifications

Parameters and characteristics for this part

Specification	Q1286ABD

Color	Gray
Container Type	Box
Design	Cover Included
Features	Wall Mount, PCB Supports, Sealing Gasket
Height [z]	56 mm
Height [z]	2.205 "
Material	Plastic, ABS
Ratings	4X, 12, IP67, 13, UL-508A, NEMA 4, 6
Size / Dimension [x]	4.724 "
Size / Dimension [x]	120 mm
Size / Dimension [y]	80 mm
Size / Dimension [y]	3.15 in
Thickness	3 mm
Thickness	0.118 in
Weight	154 g
Weight	0.34 lb

Part	Thickness	Thickness	Ratings	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Container Type	Color	Material	Design	Weight	Weight	Height [z]	Height [z]
Hoffman Enclosures, Inc. Q1286ABD	3 mm	0.118 in	12 13 4X 6 IP67 NEMA 4 UL-508A	PCB Supports Sealing Gasket Wall Mount	4.724 "	80 mm	120 mm	3.15 in	Box	Gray	Plastic ABS	Cover Included	154 g	0.34 lb	56 mm	2.205 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Gray Cover Included 4.724" L x 3.150" W (120.00mm x 80.00mm) X 2.205" (56.00mm)
